Product data
Undermount · Up to 35 kg load capacity

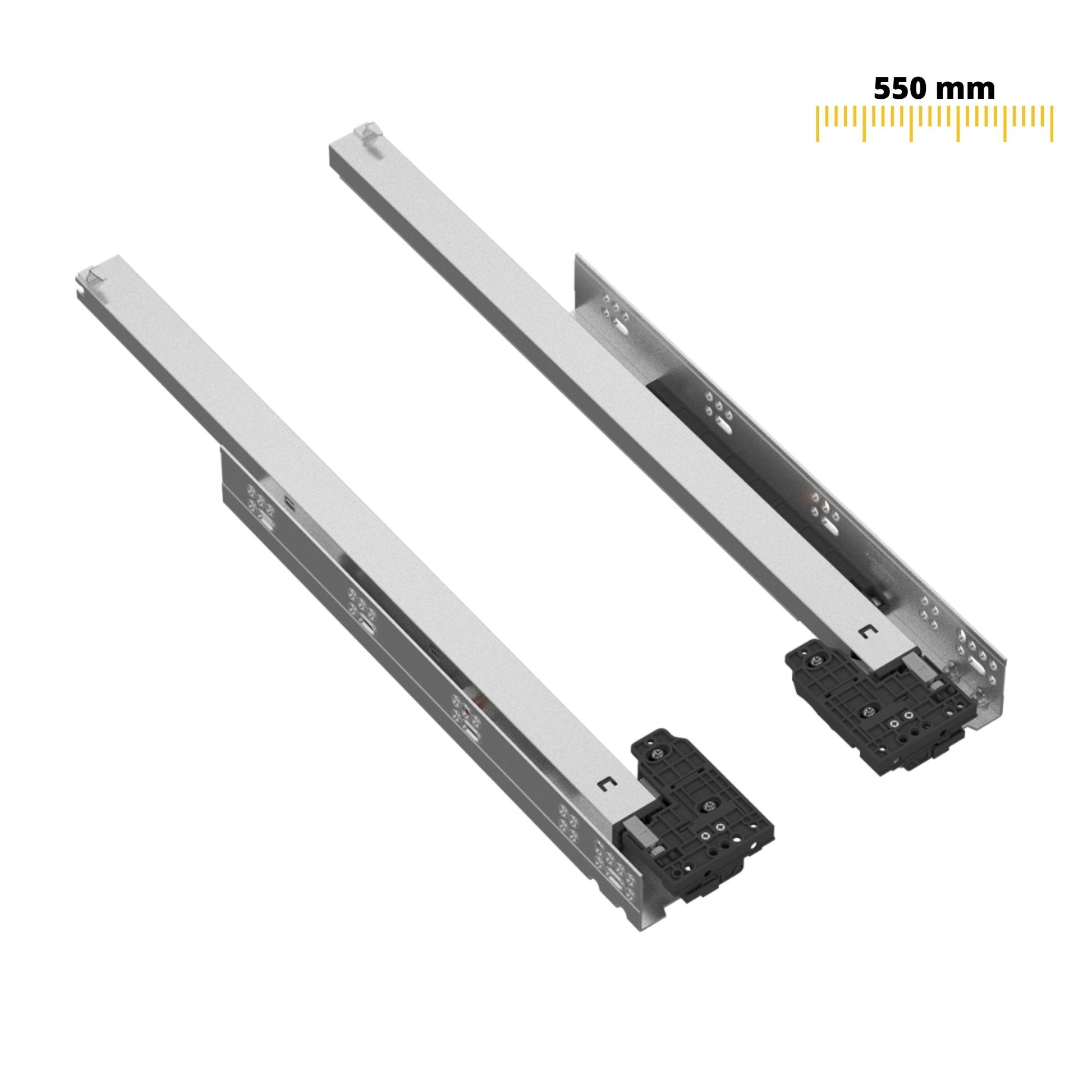

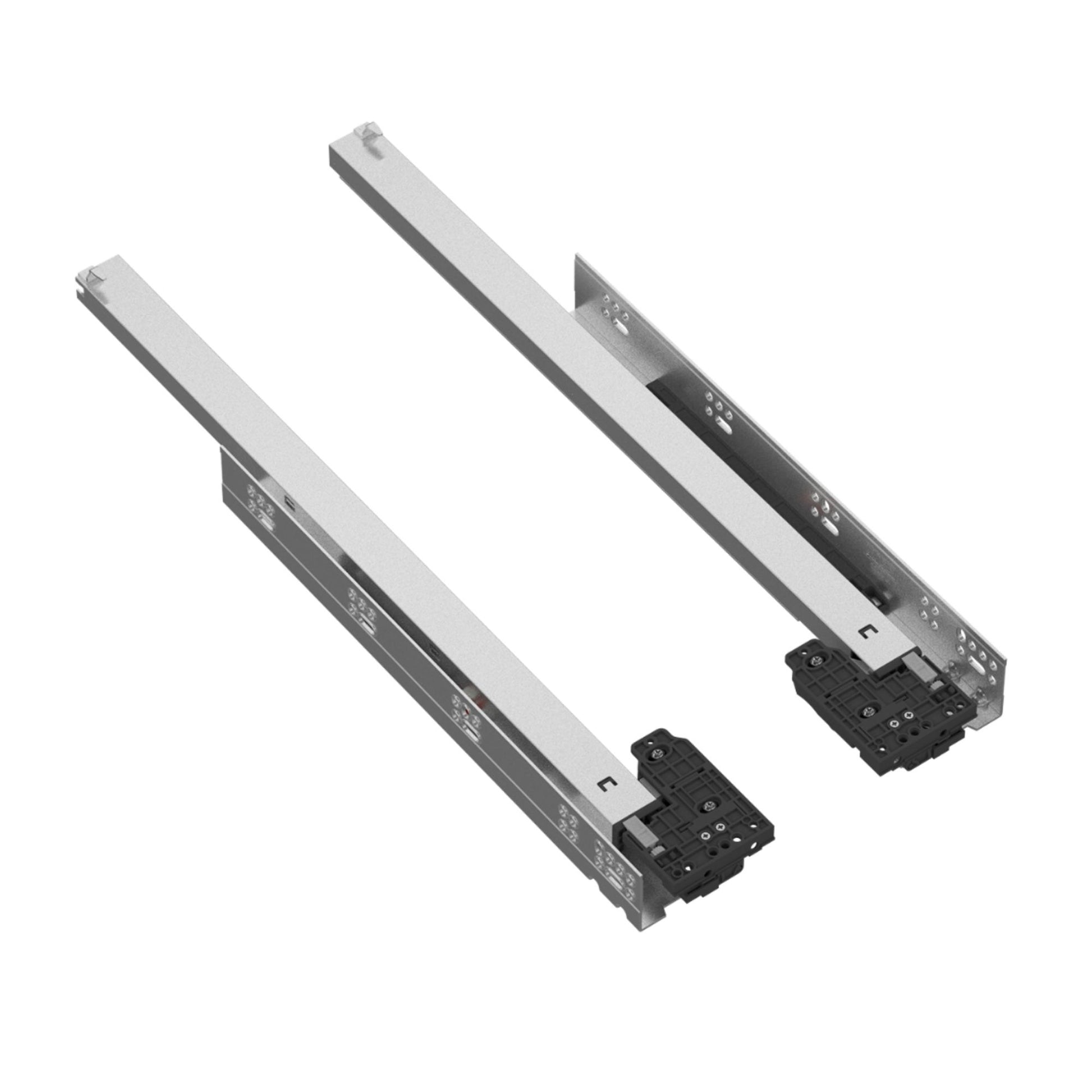

Soft-Close Concealed Undermount Drawer Runners, Full Extension - 550mm

These concealed drawer runners mount underneath the drawer box for a clean, hardware-free look while delivering smooth full extension. Integrated soft-close damping gently pulls the drawer shut without banging.

  • Additional mechanismSoft-Close
  • Full extensionYes
  • Maximum weight35kg
  • MaterialGalvanised steel
  • ColourZinc
Soft-Close Concealed Undermount Drawer Runners, Full Extension - 550mm
  • 600mm length
  • 16mm material thickness

Undermount drawer runners for wooden drawers up to 16 mm side thickness

Concealed undermount drawer runners combine complete access to drawer contents with seamless soft-close action. Mounted hidden under the drawer base, they maintain clean cabinet lines while supporting loads up to 35 kg.

  • Integrated soft-close: The built-in damping mechanism catches the drawer on the final stretch and pulls it shut silently.

  • 100% full extension: Allows unobstructed access to the entire depth of the drawer box without awkward reach-in angles.

  • 35 kg load capacity: Galvanised steel construction provides dependable stability for heavy storage units and deep drawers.

  • Undermount concealed design: Fittings stay hidden beneath the drawer bottom to keep wooden sides looking neat and uncluttered.

Where 550 mm concealed runners are the right fit

  • KitchenDeep pan drawers and base cupboards

    Full extension lets you reach cookware stored at the very back, while the soft close stops pans rattling.

  • BedroomWardrobe drawers and bedside tables

    Silent closing ensures drawers shut softly without disturbing anyone during late evenings or early mornings.

  • Living roomSideboards and media storage units

    Undermount installation hides the metal slides completely for a clean look on custom timber cabinetry.

Fitting the undermount drawer runners

Designed for timber drawer boxes with side panel thickness up to 16 mm.
  1. 1

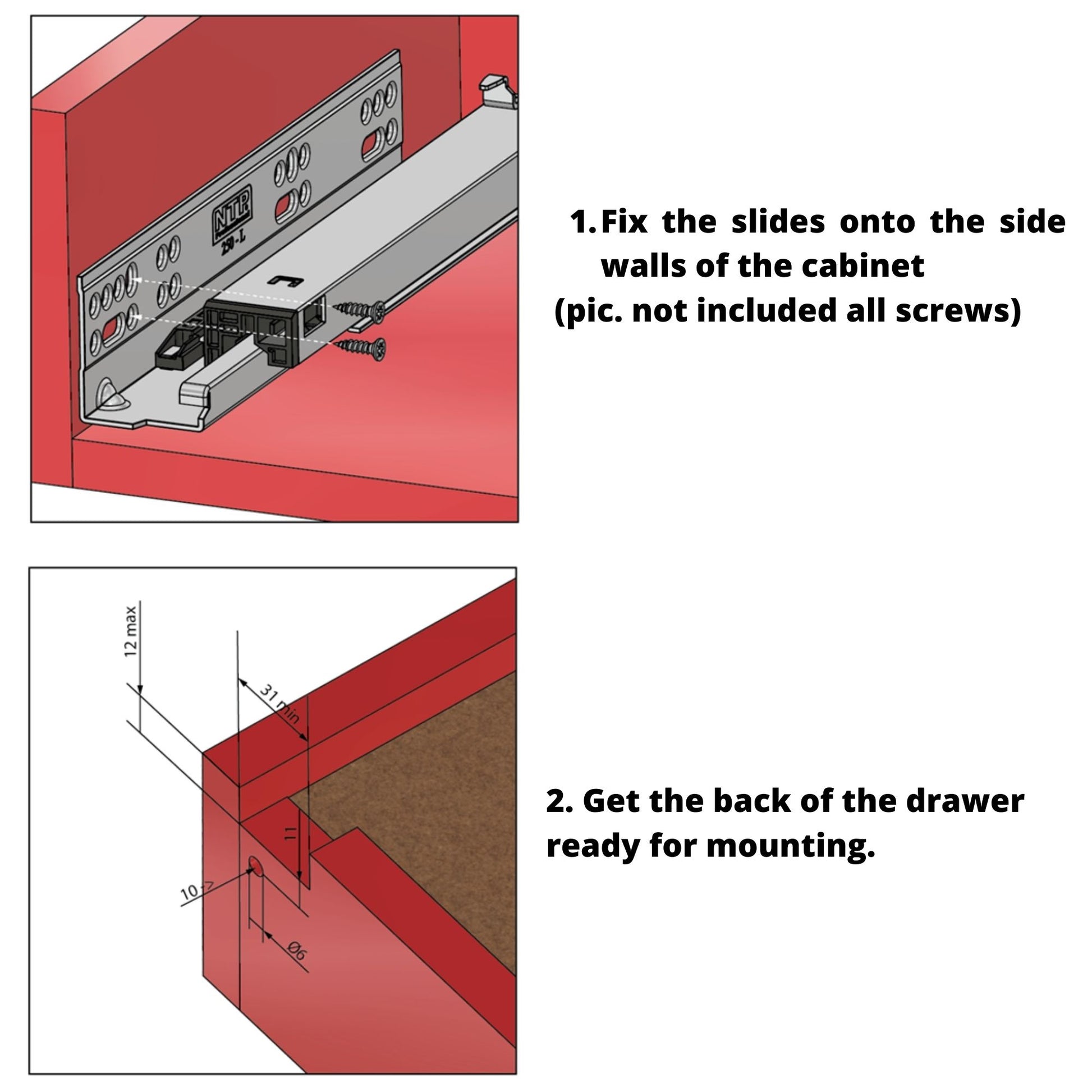

    Fix runners to carcass

    Screw the left and right runners horizontally to the cabinet side panels using the matching system holes.

  2. 2

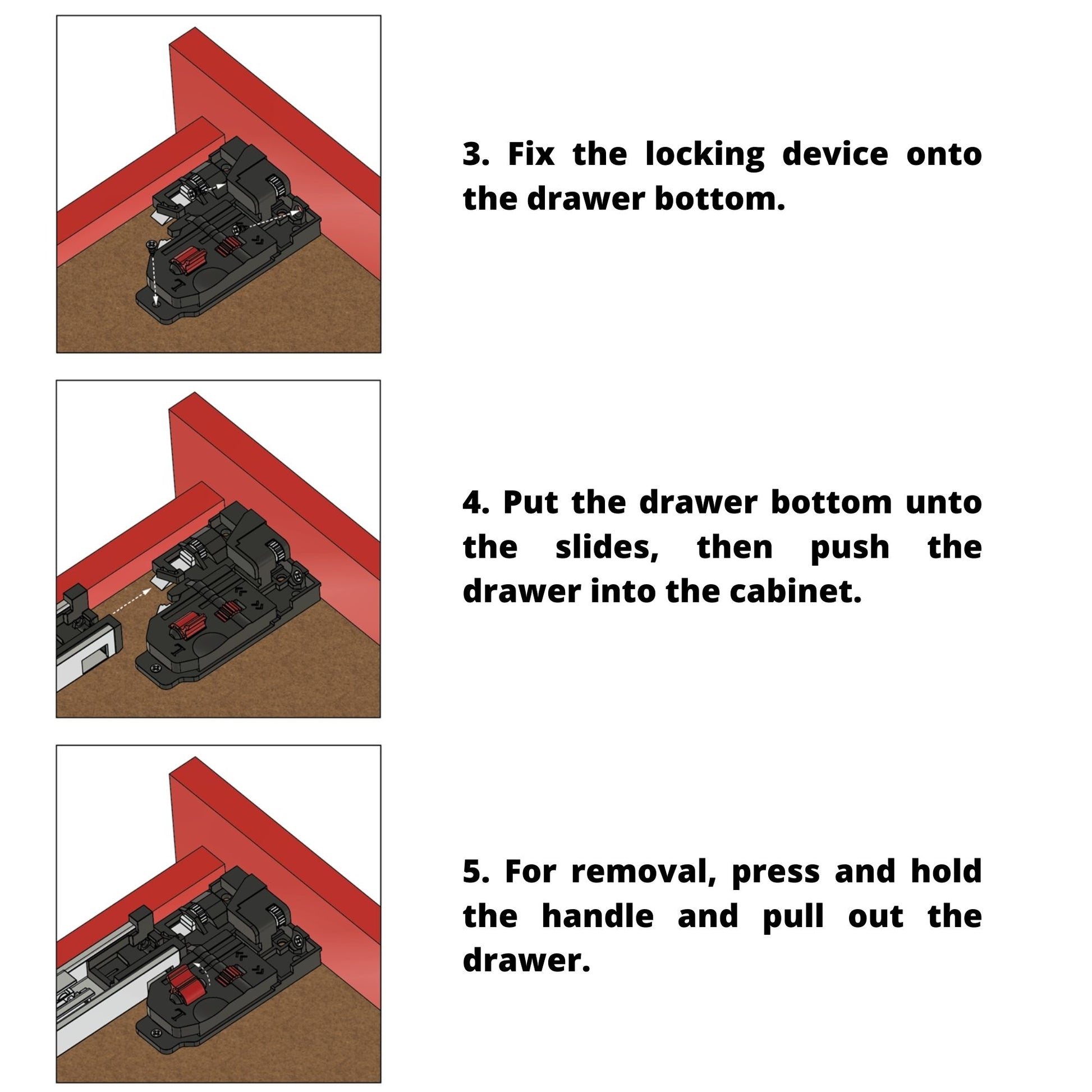

    Attach locking clips

    Fasten the front locking brackets underneath the wooden drawer base on both sides.

  3. 3
    Engage drawer box

    Place the drawer onto the runners and slide it backward until the brackets click securely into place.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-close system
Colour
Zinc
Manufacturer
Furnica
Full extension
Yes
Length
600mm
Material
Galvanised steel
Material thickness
16mm
Max. drawer side thickness
16mm
Maximum weight
35kg
Product type
Full extension
EAN
5060685604202
SKU
PTPS-19S-550
