Product data
Galvanised steel · Up to 35 kg capacity

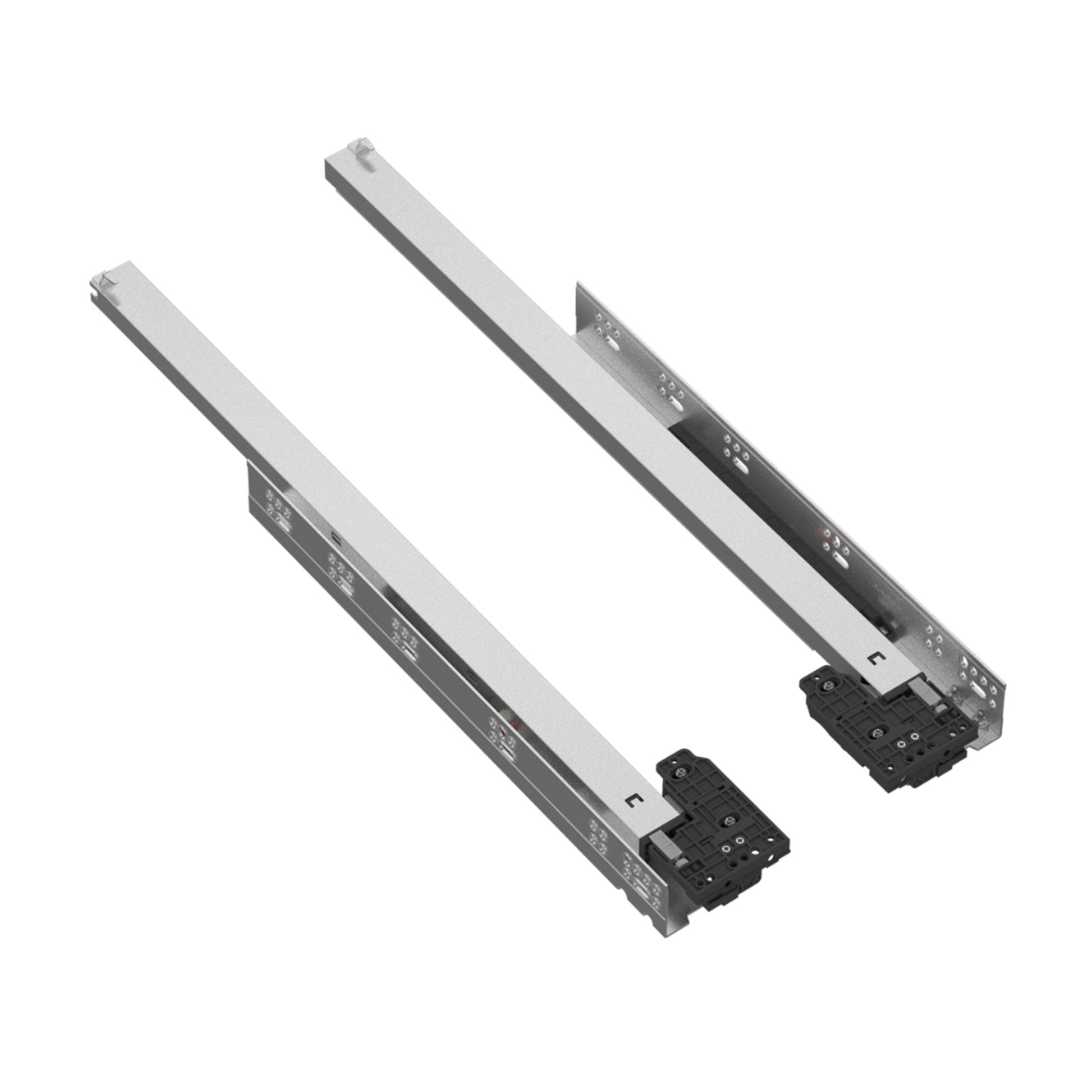

Soft-Close Concealed Undermount Drawer Runners, Full Extension - 600mm

These concealed undermount drawer runners provide smooth full extension access for deep 600 mm drawer boxes while staying completely out of sight. The built-in soft-close mechanism cushions the final movement to pull the drawer shut silently.

  • Additional mechanismSoft-Close
  • Full extensionYes
  • Maximum weight35 kg
  • MaterialZinc coated steel
  • Maximum drawer side thickness16 mm
  • ColourZinc
Soft-Close Concealed Undermount Drawer Runners, Full Extension - 600mm

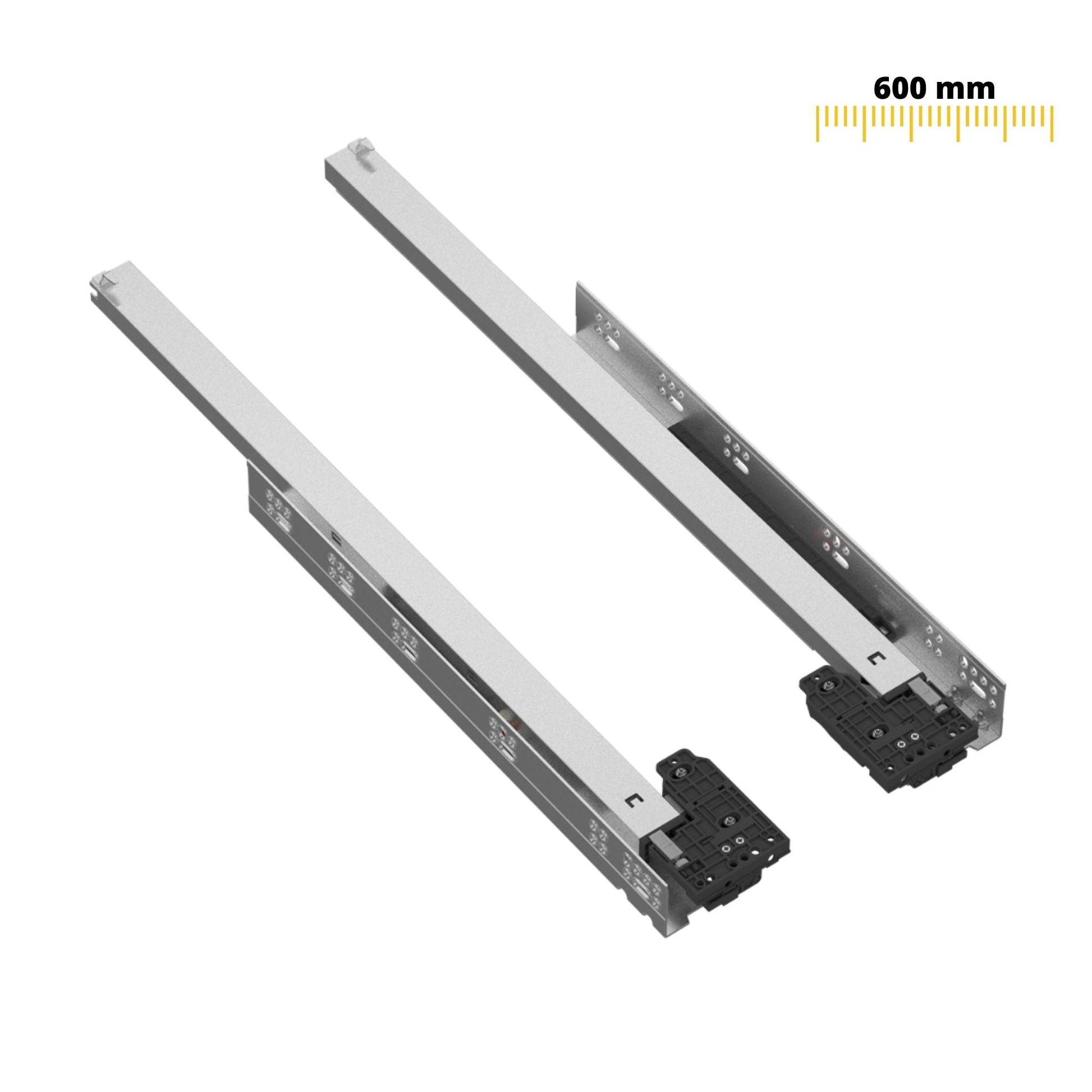

  • 600mm length
  • 16mm material thickness

Concealed 600 mm runners for wooden drawers up to 16 mm side thickness

Concealed undermount drawer runners are fitted underneath the drawer base to keep the running hardware hidden from view. Built from zinc coated steel, this system supports drawers weighing up to 35 kg across the entire stroke.

  • Full extension travel: Opens completely out of the cabinet carcass so you can reach items stored right at the back of deep units.

  • Integrated soft-close damping: Slows the closing action gently over the last few centimetres to prevent slamming and keep contents stable.

  • Up to 35 kg load rating: Accommodates heavy crockery, pantry goods, or deep storage pans without sagging or catching.

  • Zinc coated steel construction: Provides reliable structural strength and long-term corrosion resistance for demanding cabinet environments.

Ideal applications for 600 mm undermount runners

  • KitchenDeep pan drawers & larders

    The 35 kg capacity easily supports loaded stockpots and heavy tableware while soft-close prevents shifting.

  • BedroomWide chest of drawers

    Silent closing ensures quiet operation late in the evening without disturbing anyone sleeping nearby.

  • Living roomSideboards & lowboard cabinets

    Undermount fixing keeps all metal hardware concealed under the drawer box for a clean, minimalist interior look.

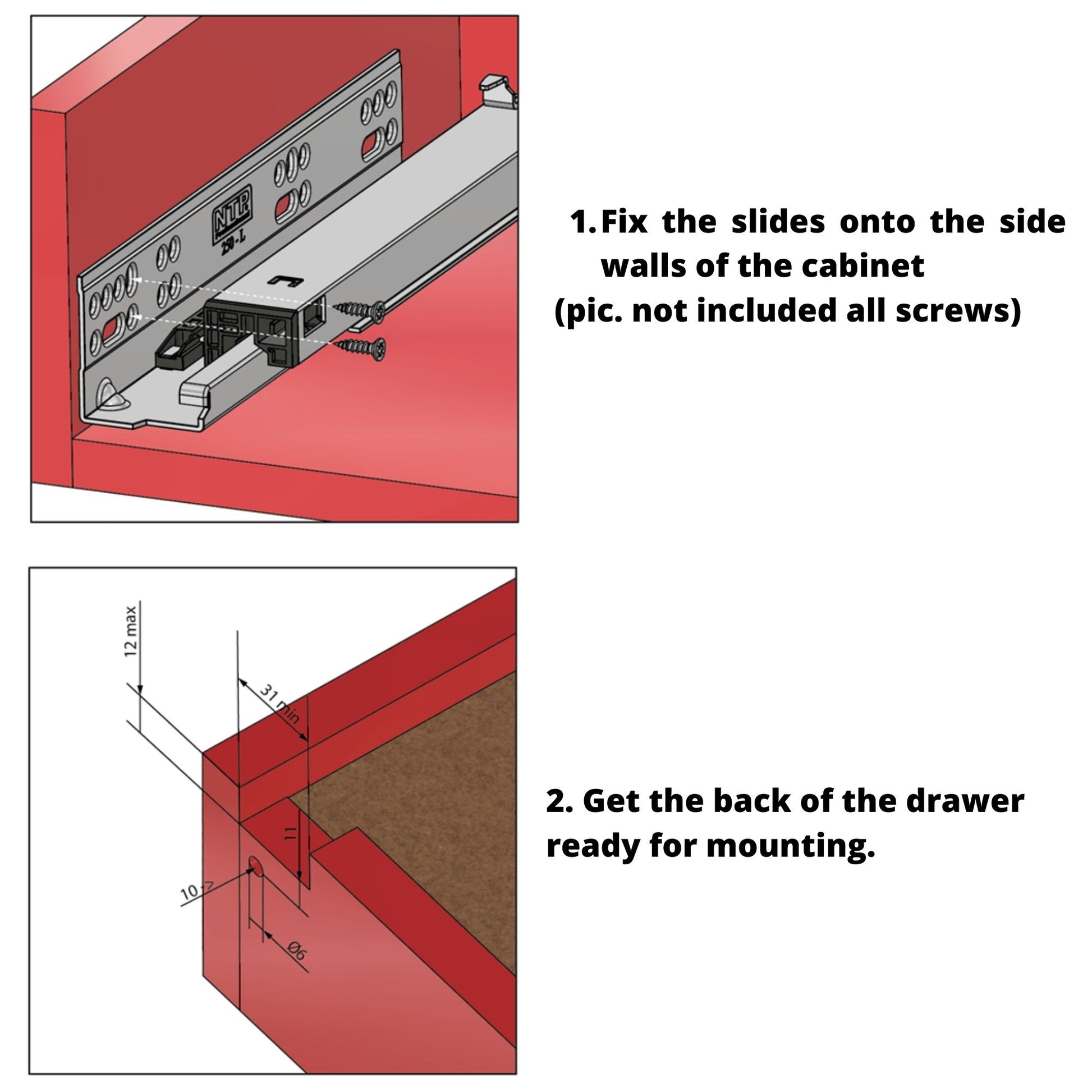

How to install undermount drawer runners

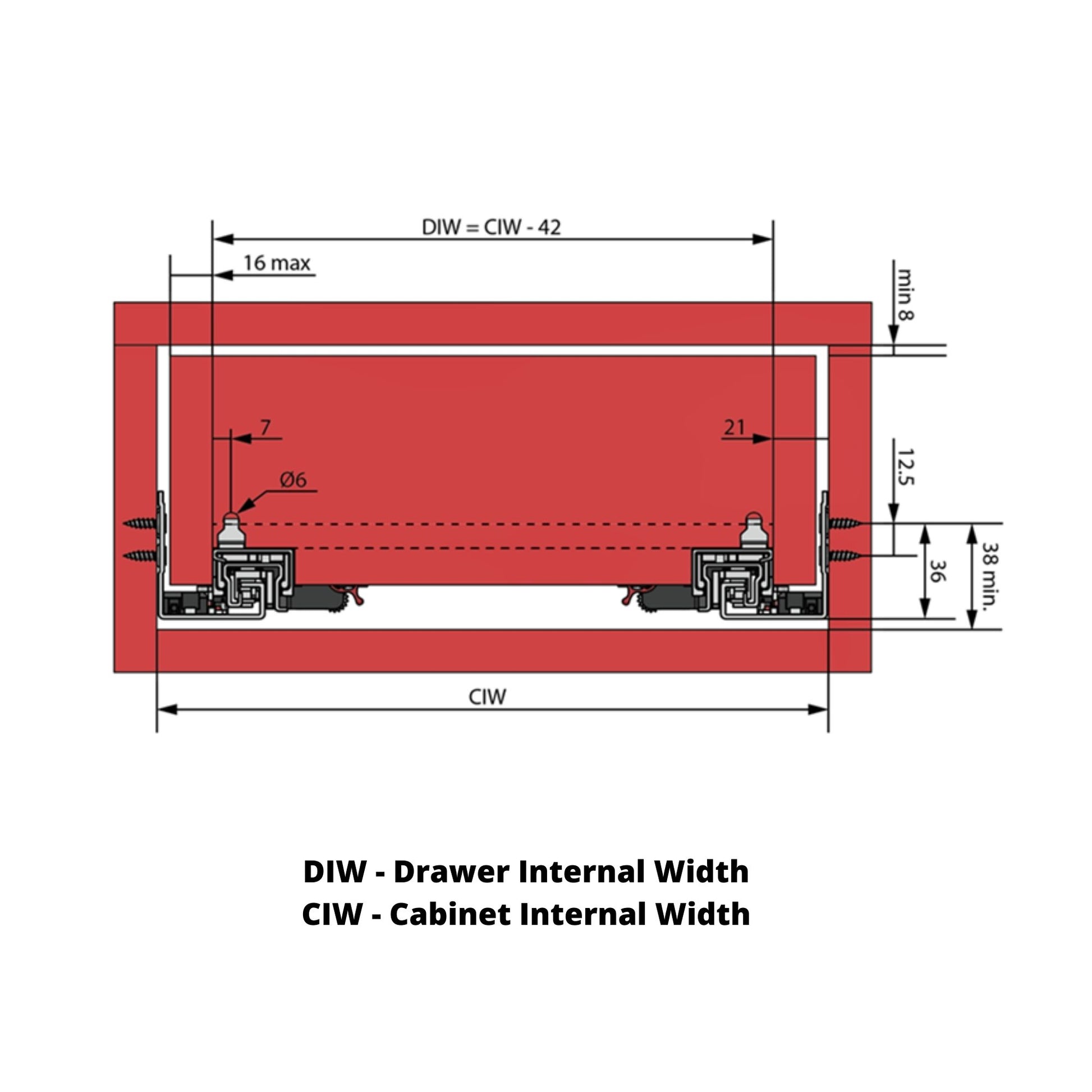

Designed for wooden drawer boxes with maximum 16 mm side thickness.
  1. 1
    Fix the runners to the carcass

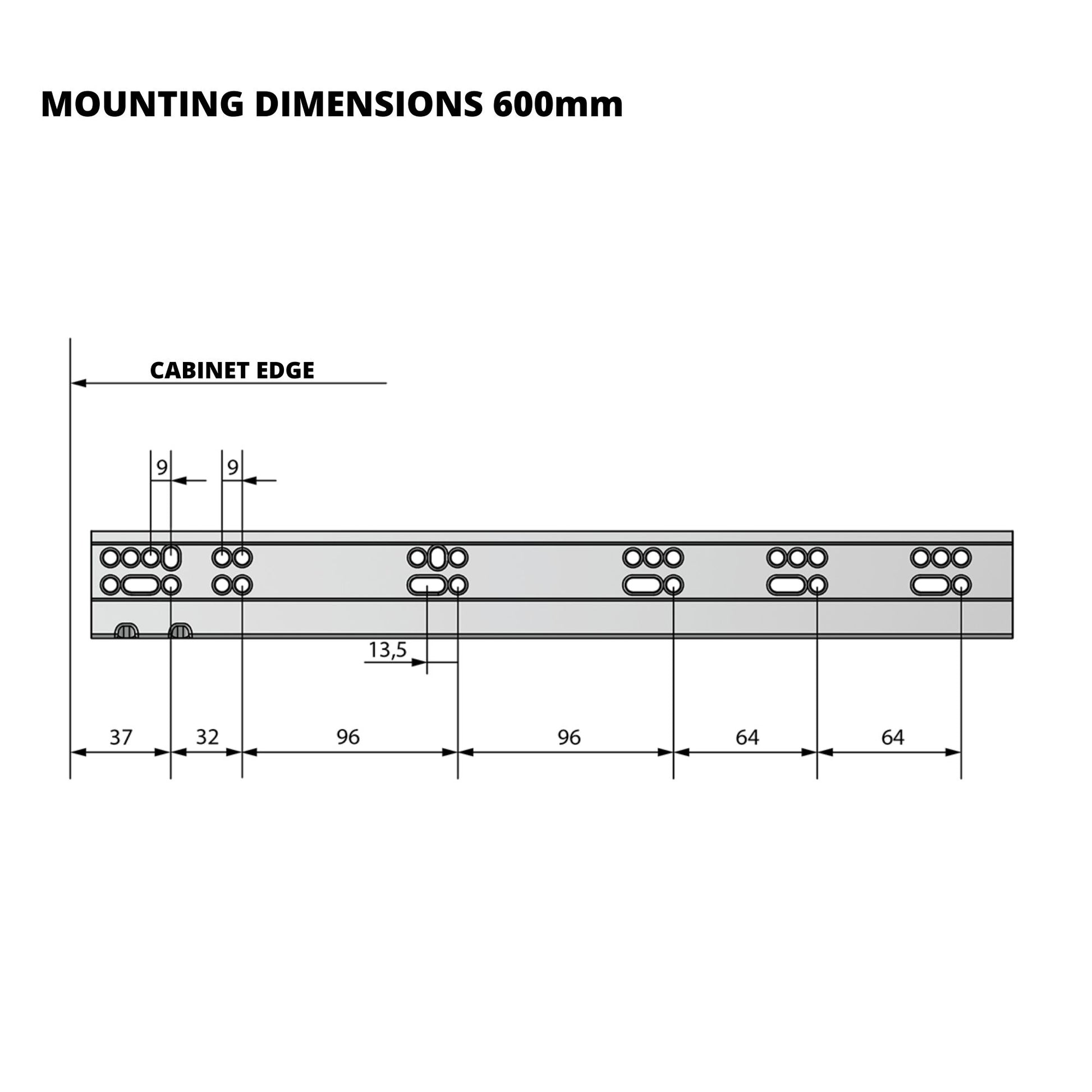

    Screw the left and right runners level onto the internal cabinet side panels using the pre-drilled fixing pattern.

  2. 2

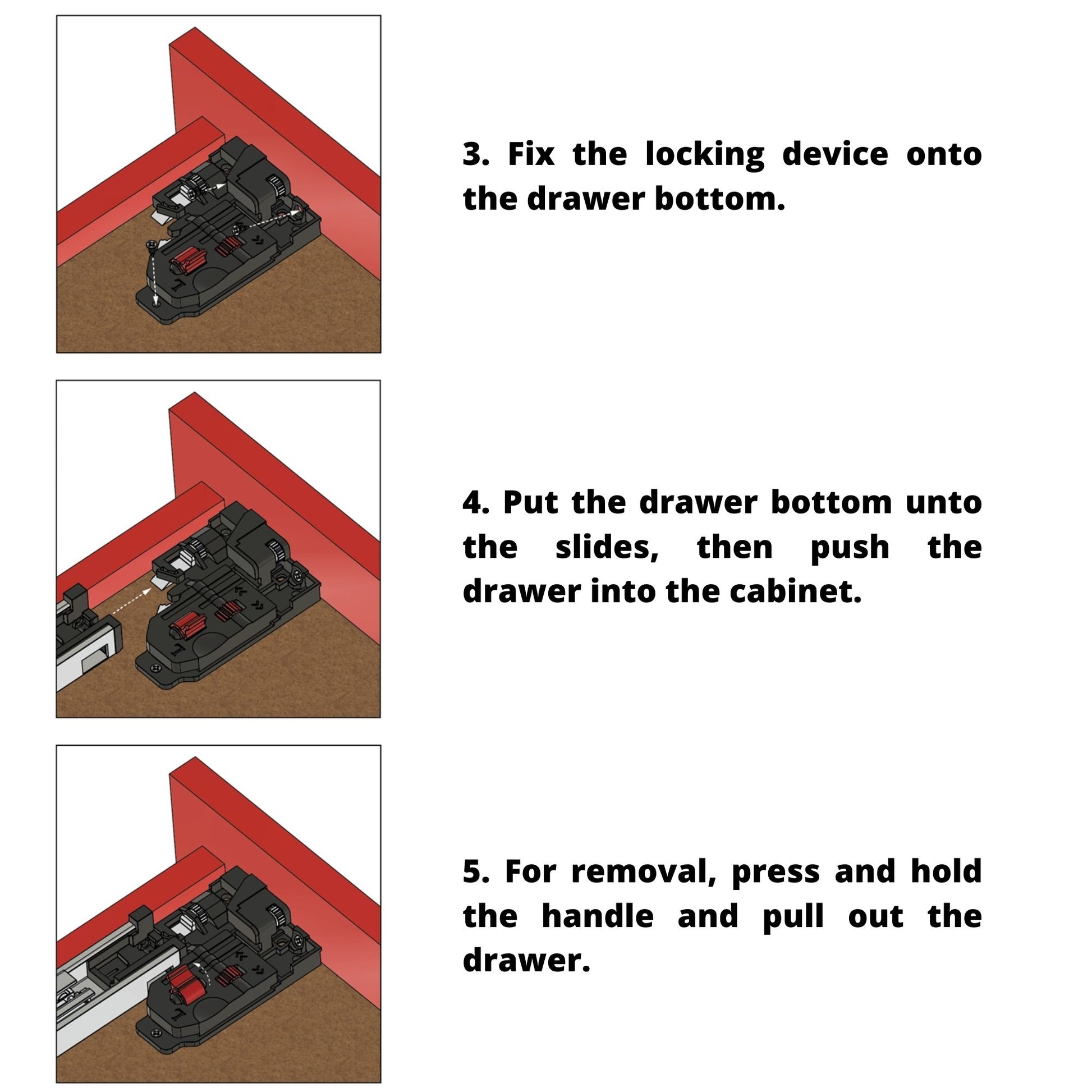

    Attach the locking clips to the drawer base

    Fasten the adjustment brackets to the front underside of the wooden drawer box.

  3. 3
    Mount and engage the drawer

    Slide the drawer box onto the extended tracks until the brackets engage securely with an audible click.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-close system
Colour
Zinc
Manufacturer
Furnica
Full extension
Yes
Length
600mm
Material
Galvanised steel
Material thickness
16mm
Max. drawer side thickness
16mm
Maximum weight
35kg
Product type
Full extension
EAN
5060685604219
SKU
PTPS-19S-600
