Product data
Concealed undermount · Up to 35 kg

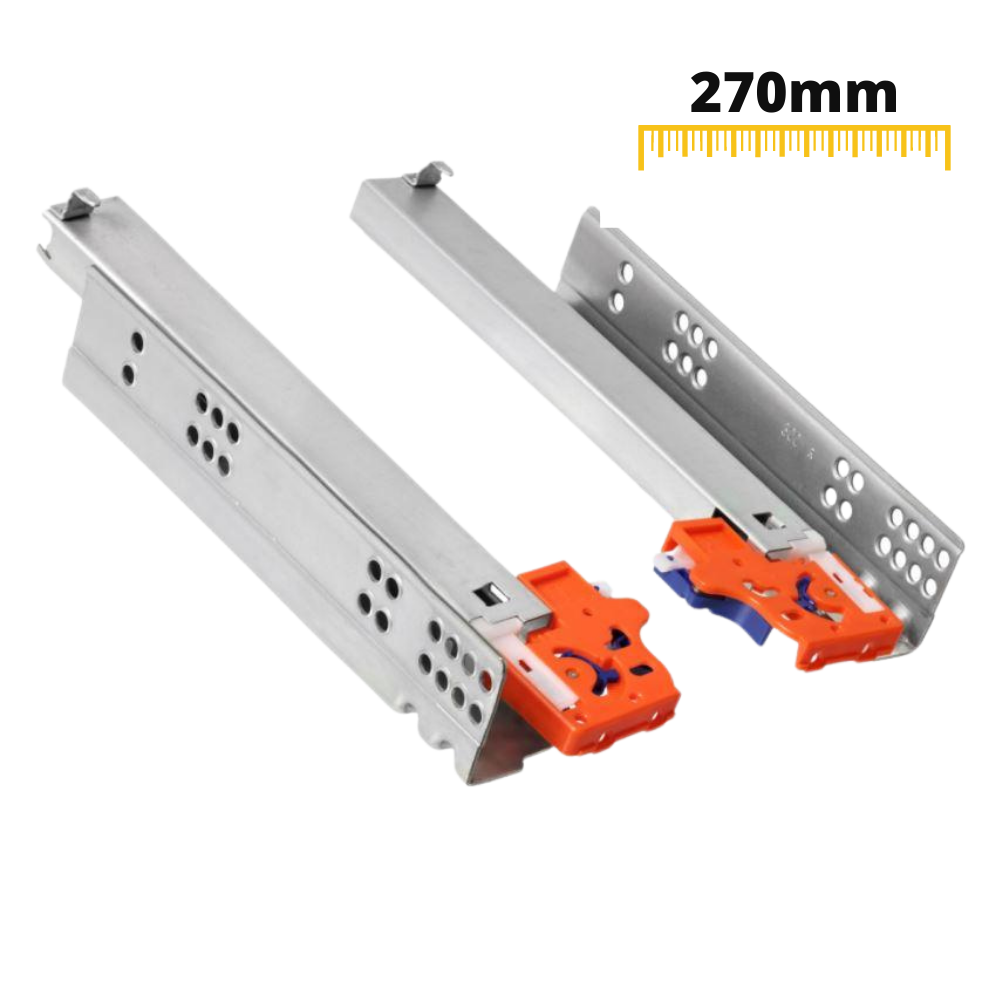

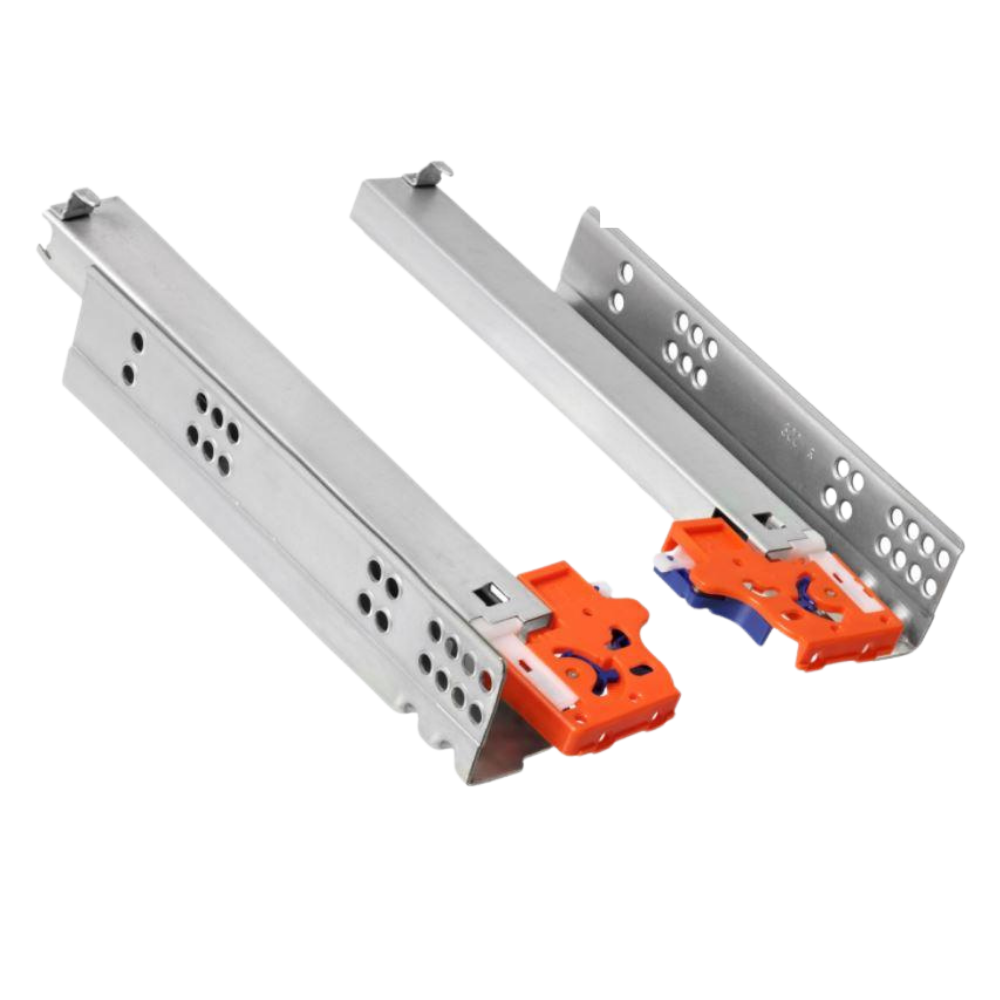

Soft-Close Concealed Undermount Drawer Runners, Full Extension - 270mm

These 270mm drawer runners fit beneath wooden drawer boxes for completely hidden hardware and smooth full extension. The integrated soft close drawer runner mechanism cushions every closing motion quietly.

  • Additional mechanismSoft-Close
  • Full extensionYes
  • Maximum weight35kg
  • MaterialZinc coated steel
  • Maximum drawer side thickness16mm
Soft-Close Concealed Undermount Drawer Runners, Full Extension - 270mm
  • 600mm length
  • 16mm material thickness

Undermount drawer runners for wooden drawers up to 16 mm side thickness

Concealed undermount runners mount neatly underneath the drawer base, keeping all steel mechanisms hidden while opening fully on durable zinc-coated tracks.

  • Integrated soft-close action: The built-in damper catches the drawer on the final stretch and pulls it shut silently.

  • Full extension access: The 100% extension travel gives unrestricted access right to the back of shallow drawer boxes.

  • 35 kg load capacity: Rigid zinc-coated steel rails carry solid loads safely without sagging or jamming.

  • Precision 3D adjustment: Front brackets allow fine tuning of drawer front alignment vertically and horizontally.

Where to install 270mm concealed drawer runners

  • BedroomBedside tables and dressing tables

    A shallow 270mm nominal depth fits compact bedroom furniture while silent closing prevents noise.

  • Living roomSideboards and media consoles

    Undermount runners keep metal tracks invisible, maintaining clean lines on wooden storage units.

  • KitchenCompact kitchen drawers

    Full extension allows complete overview and retrieval of cutlery and utensils from short cabinets.

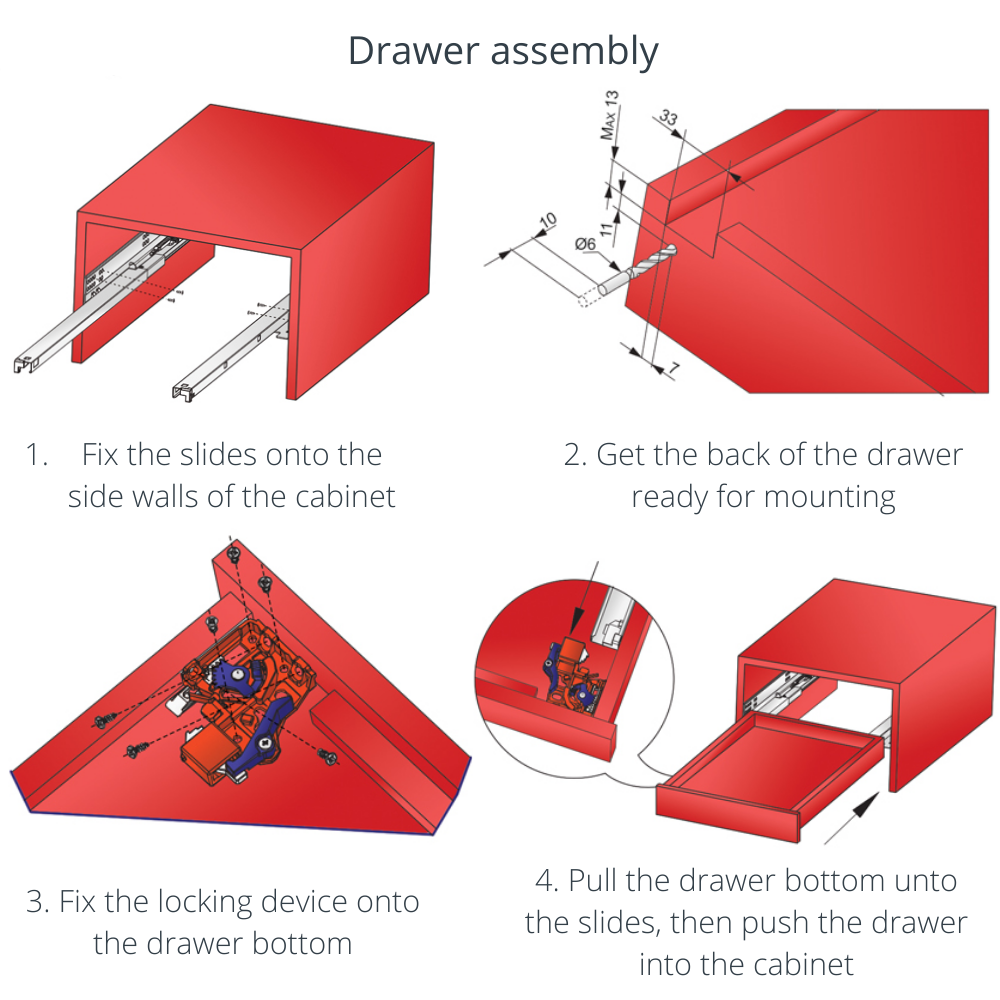

Fitting concealed undermount drawer runners

For timber drawer boxes with maximum 16 mm side wall thickness
  1. 1
    Secure runners to carcass

    Screw the left and right runners horizontally to the internal carcass side panels.

  2. 2
    Fix locking clips under drawer

    Mount the front adjustment brackets underneath the wooden drawer box bottom.

  3. 3
    Engage drawer and adjust

    Slide the drawer onto the tracks until the clips engage, then fine-tune front gaps with the 3D adjusters.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
Soft-close system
Colour
Zinc
Manufacturer
Furnica
Full extension
Yes
Length
600mm
Material
Galvanised steel
Material thickness
16mm
Max. drawer side thickness
16mm
Maximum weight
35kg
Product type
Full extension
EAN
5060857452068
SKU
PTPS-19S-270
