Cam Dowel 24mm with M6 Screw-Thread - 100 pcs
Biscuits & Dowels

Cam Dowel 24mm with M6 Screw-Thread - 100 pcs

Availability: In Stock

Order within , and get it between and

Free delivery Furnica
£4.50
20% VAT included
£4.50
Klarna
M6 metric thread · Pack of 100

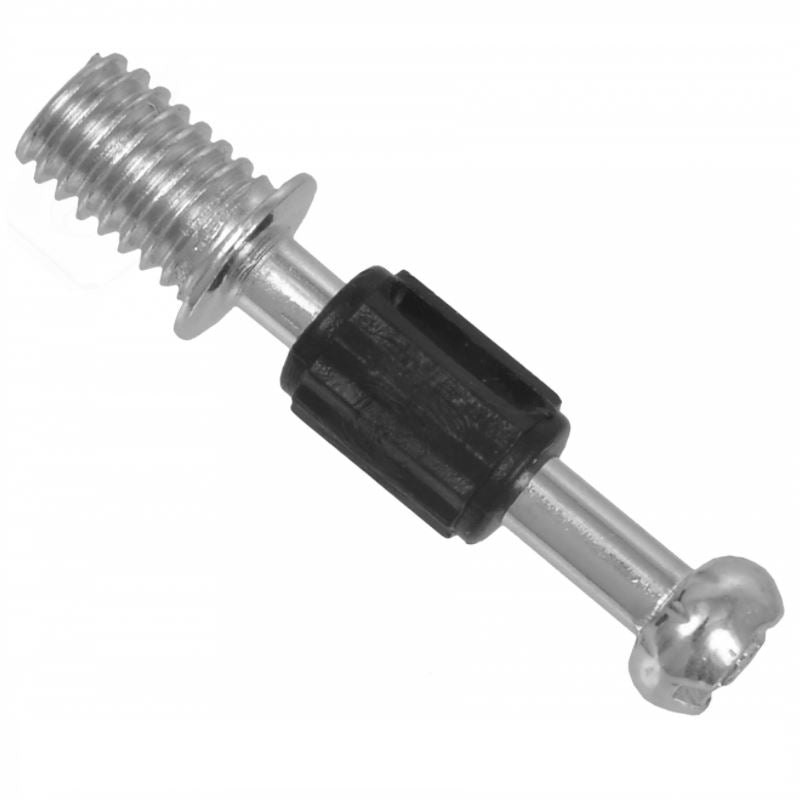

Cam Dowel 24mm with M6 Screw-Thread - 100 pcs

This cam dowel features a metric M6 thread and a 24mm length for concealed furniture carcass joints. Made from zinc coated steel and durable plastic, it provides rigid and stable connections with compatible cam locks.

  • ThreadMetric (M6)
  • MaterialZinc coated steel/plastic
  • ColourZinc/Black
  • Quantity100 pieces
Cam Dowel 24mm with M6 Screw-Thread - 100 pcs
  • 24mm length

M6 thread and 24mm length for secure panel joints

The cam dowel 24mm anchors directly into M6 threaded inserts to create robust, invisible panel joints. Zinc coated steel delivers reliable tensile strength while the plastic sleeve ensures neat alignment in the cabinet.

  • Metric M6 screw thread: Winds directly into pre-fitted M6 threaded bushings or pre-tapped holes for a solid anchor.

  • Zinc coated steel core: Resists corrosion and provides high tensile strength when locked under cam tension.

  • Standard 24mm length: Engages smoothly with standard cam locks for a flush, concealed panel joint.

  • Bulk 100-piece pack: Supplies sufficient screw dowels to assemble multiple cupboards, chests or shelving units.

Where to use M6 screw cam dowels

  • CabinetryFlat-pack carcass assembly

    Joins wardrobe sides, base panels and fixed shelves using standard M6 threaded fittings.

  • RepairReplacing stripped dowels

    Acts as a direct replacement for bent or loose connectors in existing M6-fitted furniture.

  • WorkshopCustom furniture building

    Provides a concealed, demountable fixing point when combined with matching M6 threaded inserts.

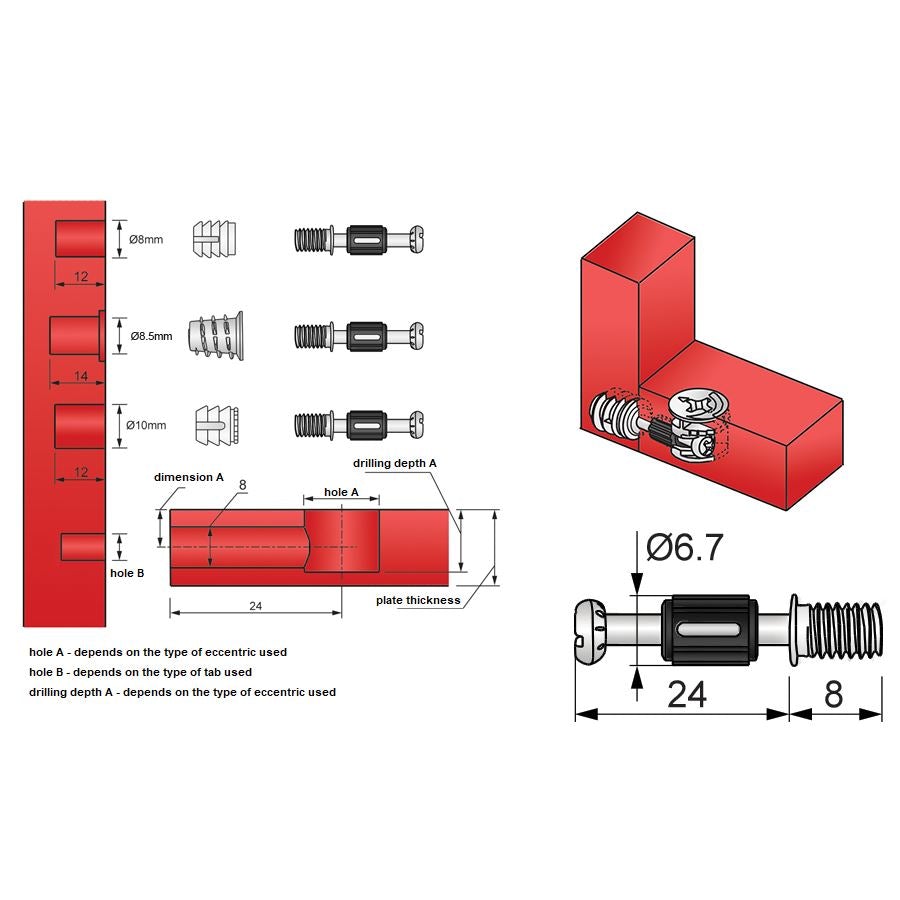

Fitting the cam dowel screw

Requires panels pre-drilled with M6 threaded inserts
  1. 1
    Align

    Position the M6 threaded end straight into the pre-drilled threaded insert or socket.

  2. 2
    Drive

    Screw the dowel in clockwise with a screwdriver until the plastic collar sits flush against the panel surface.

  3. 3
    Connect

    Slot the mating panel over the projecting 24mm dowel pin and tighten the cam lock to secure the joint.
