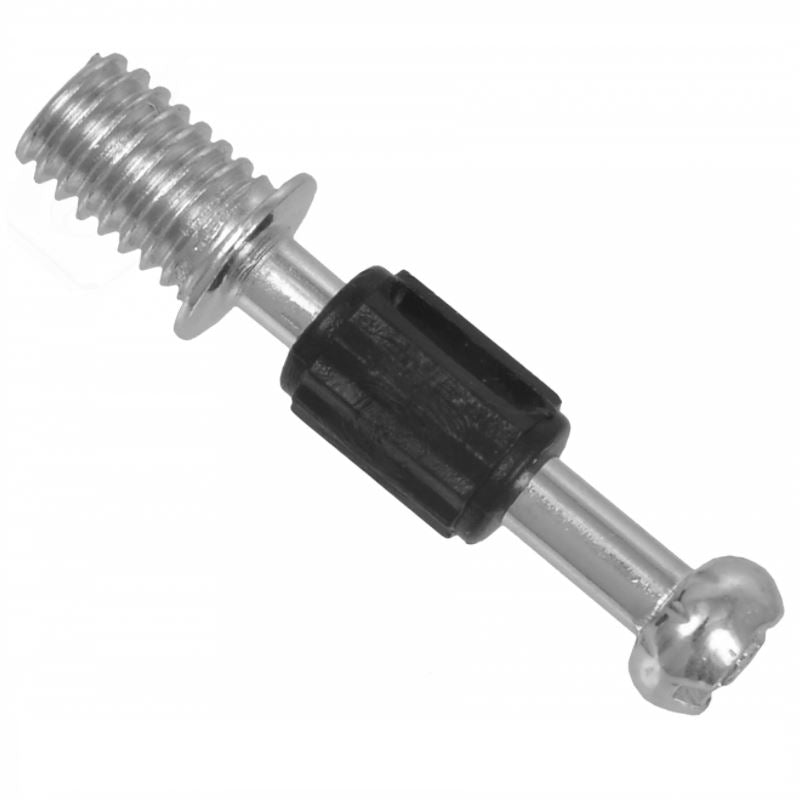

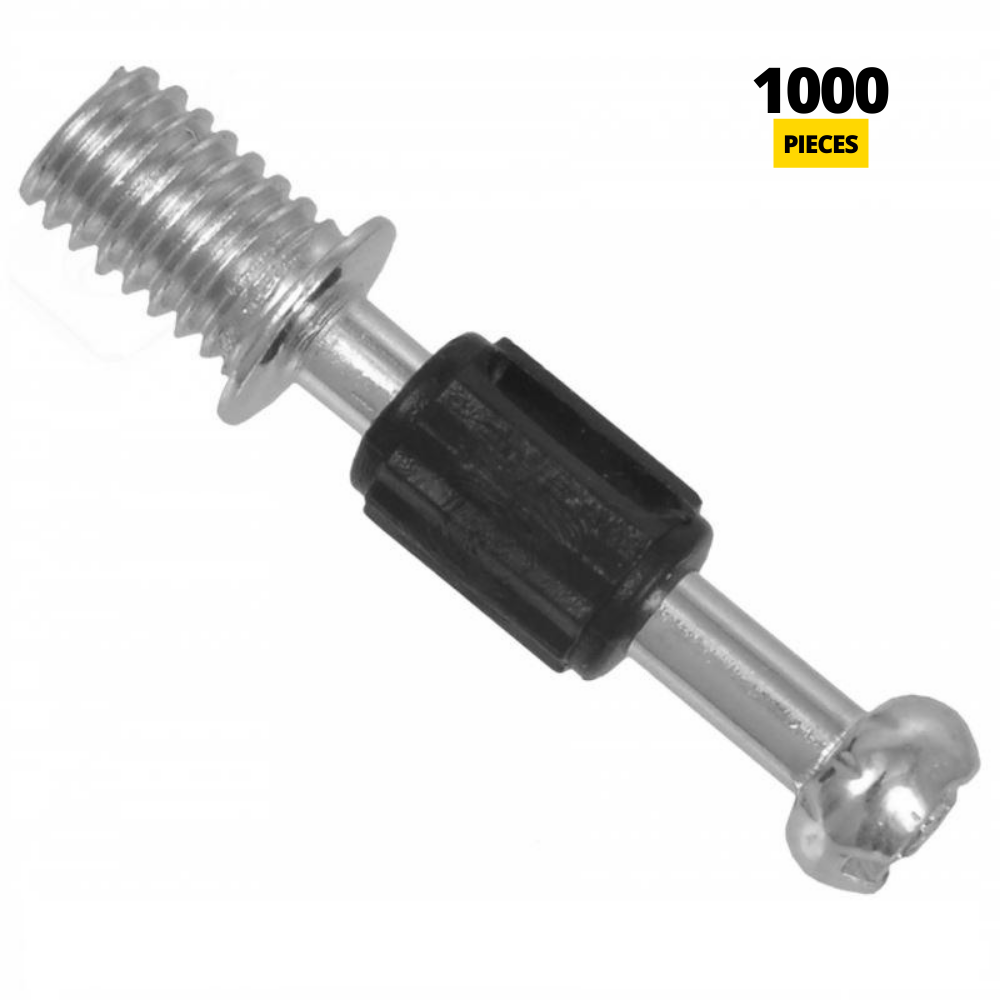

Cam Dowel 24mm with M6 Screw-Thread - 1000 pcs
Biscuits & Dowels

Cam Dowel 24mm with M6 Screw-Thread - 1000 pcs

Availability: In Stock

Order within , and get it between and

Free delivery Furnica
£37.61
20% VAT included
£37.61
Klarna
M6 metric thread · Bulk pack of 1000

Cam Dowel 24mm with M6 Screw-Thread - 1000 pcs

These 24 mm screw dowels create sturdy, knock-down joints across cabinet panels and flat-pack assemblies. Designed with an M6 metric thread, each fitting screws directly into threaded inserts for a firm grip.

  • ThreadMetric (M6)
  • MaterialZinc coated steel/plastic
  • ColourZinc/black
  • Quantity1000 pieces
Cam Dowel 24mm with M6 Screw-Thread - 1000 pcs
  • 24mm length

Knock-down joining with M6 thread and 24 mm projection

The cam dowel with M6 screw-thread provides a solid connection between furniture panels when paired with standard cam locks. The combination of zinc coated steel and plastic ensures dependable alignment during repeat assembly.

  • Metric M6 thread: Screws straight into matching M6 inserts or threaded sleeves for high pull-out resistance.

  • Zinc coated steel core: Provides corrosion resistance and structural strength under constant joint tension.

  • Standard 24 mm length: Engages smoothly with standard cam housings for clean, tight carcase joins.

  • 1000-piece trade pack: Supplies large joinery projects, workshop builds, and repetitive furniture assembly runs.

Applications for 24 mm M6 dowels

  • CupboardsCabinet Carcase Assembly

    Connect side panels to tops and bases in wardrobes or kitchen units using standard cam fittings.

  • DesksFlat-Pack Office Tables

    Fix leg frames and tops using pre-drilled M6 metal inserts for repeated dismantling and reassembly.

  • WorkshopBatch Furniture Production

    Keep assembly benches running continuously on large-scale joinery jobs with 1000 pieces on hand.

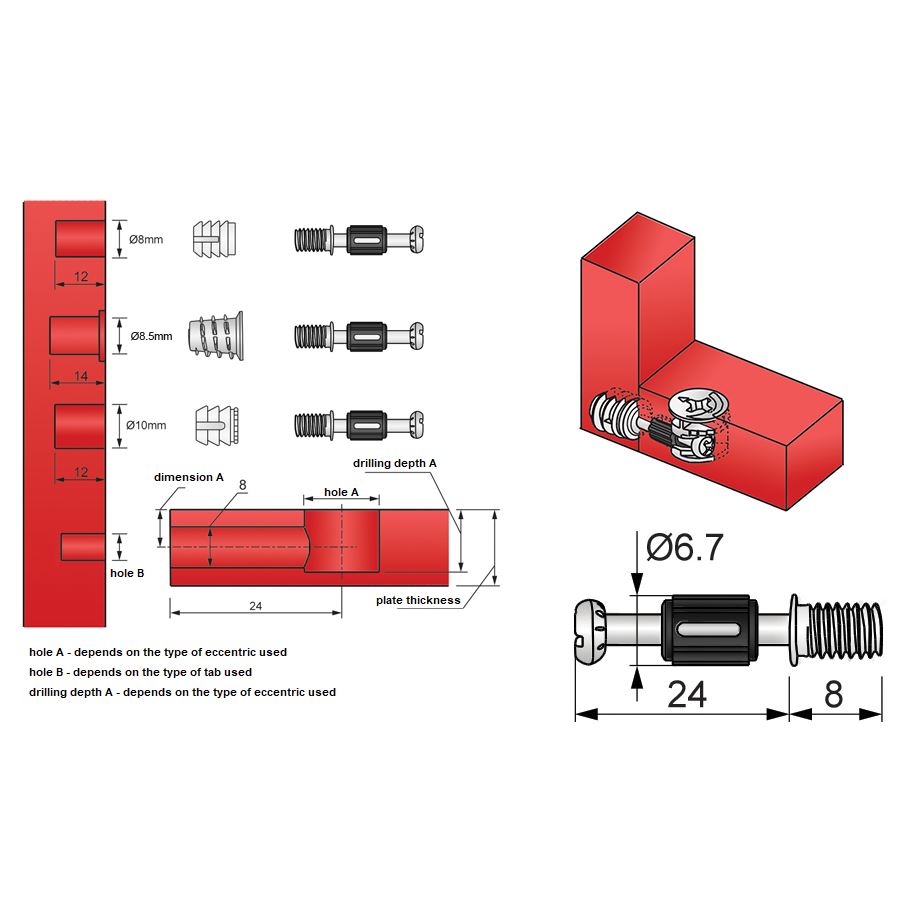

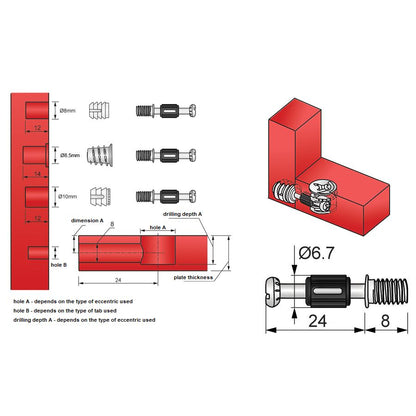

Fitting the M6 cam dowel

Requires a pre-installed M6 threaded insert or sleeve in the receiving panel.
  1. 1
    Thread the dowel

    Screw the M6 metric end directly into the prepared threaded insert until firmly seated.

  2. 2
    Align the panels

    Guide the adjoining board over the 24 mm protruding pin so it enters the matching side hole.

  3. 3
    Lock the cam

    Turn the cam lock in the second panel to grip the dowel head and pull the joint flush.
