Cam Expanding Dowel L24mm, M8 - 1000 pcs
Biscuits & Dowels

Cam Expanding Dowel L24mm, M8 - 1000 pcs

Availability: In Stock

Order within , and get it between and

Free delivery Furnica
£65.06
20% VAT included
£65.06
Klarna
Zinc-plated steel and plastic · Pack of 1000

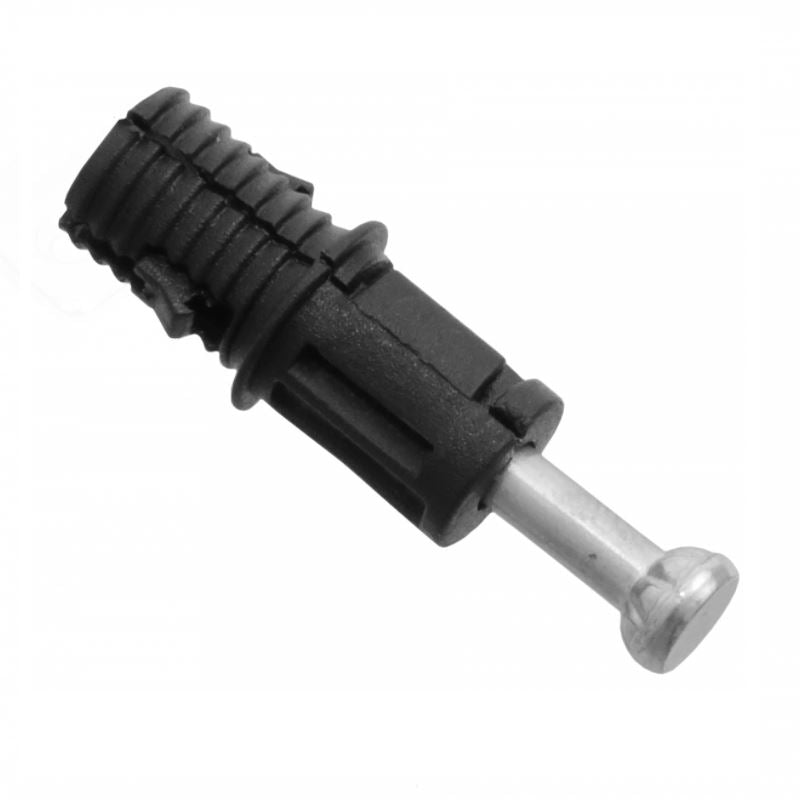

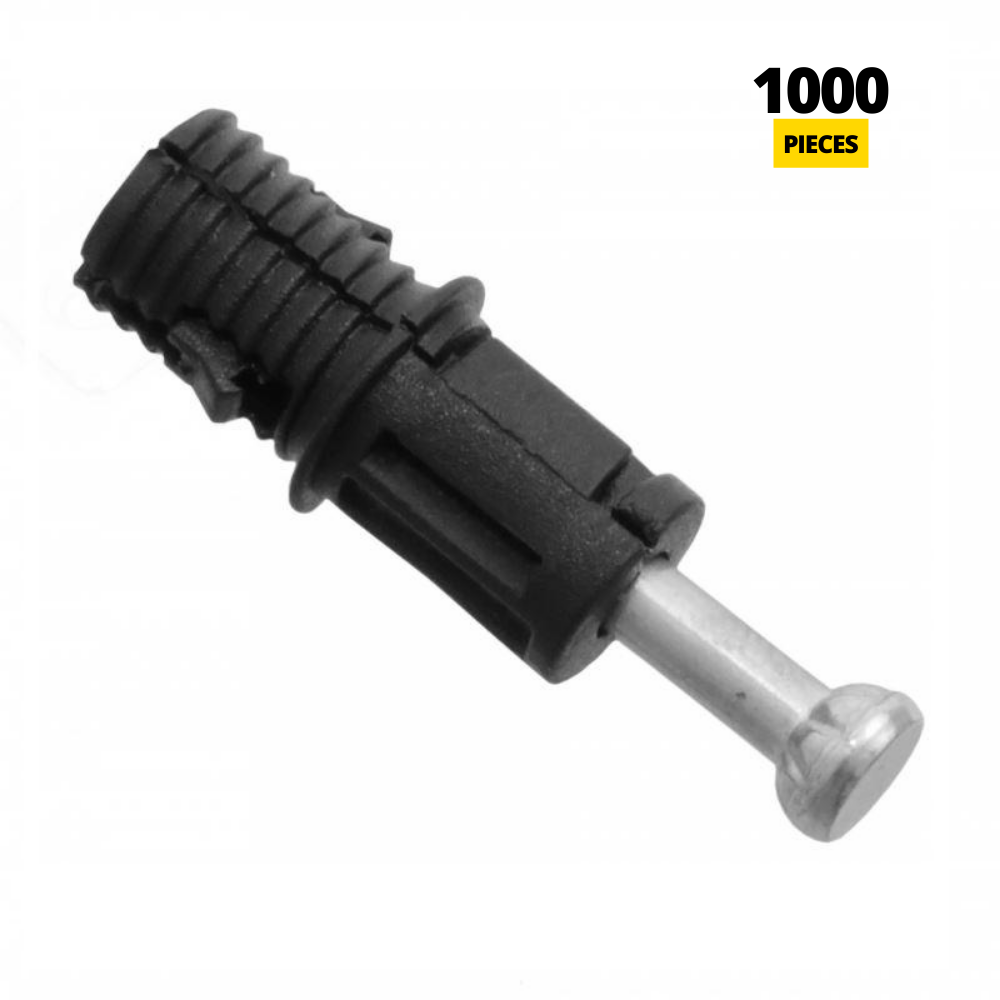

Cam Expanding Dowel L24mm, M8 - 1000 pcs

This 24 mm cam dowel provides a robust mechanical joint for flat-pack cabinetry and furniture carcass assembly. Fitted with a standard metric M8 thread, it anchors securely into pre-drilled holes for reliable wood-to-wood fixing.

  • ThreadMetric (M8)
  • MaterialZinc-coated steel / plastic
  • Quantity1000 pcs
  • ColourZinc / Black
Cam Expanding Dowel L24mm, M8 - 1000 pcs
  • 24mm length

Expanding M8 dowel in 24 mm length for cabinet carcasses

The cam expanding dowel combines zinc-coated steel with a plastic sleeve to deliver strong holding power in furniture panels. Designed for standard metric M8 sockets, it creates clean, rigid knock-down connections across panel-based cabinetry.

  • Metric M8 thread: Screws precisely into threaded inserts or pre-tapped elements to ensure a tight, repeatable connection.

  • Steel and plastic hybrid: The zinc-coated steel body resists high tensile loads while the expanding plastic section grips the carcass wall securely.

  • Bulk workshop pack: Supplied as a box of 1000 pieces to cover large furniture production runs or extensive refurbishment jobs without interruption.

  • Compact 24 mm reach: Provides sufficient anchoring depth in standard furniture panels without risking surface blow-out.

Where to use M8 cam expanding dowels

  • CabinetryCarcass and wardrobe assembly

    Join side panels, base shelves, and tops in knock-down furniture where sturdy, demountable fixings are required.

  • WorkshopBatch furniture manufacturing

    Use the 1000-piece pack across volume assembly lines to maintain consistent hardware specs across multiple cabinet runs.

  • RepairRefitting loose timber joints

    Replace damaged or missing connectors in knock-down units using standard 8 mm holes and M8 mating hardware.

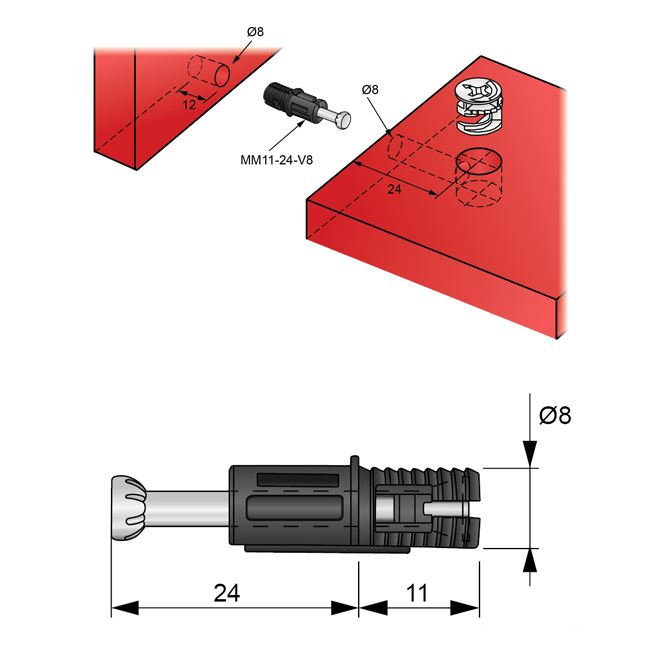

Fitting the cam expanding dowel

Requires pre-drilled 8 mm holes
  1. 1
    Prepare the hole

    Ensure the panel has a clean, correctly sized 8 mm diameter hole drilled to accommodate the M8 thread.

  2. 2
    Drive the dowel

    Screw the dowel straight into the prepared opening until the collar sits flush against the panel surface.

  3. 3
    Engage the joint

    Align the matching panel fitted with the corresponding cam lock and rotate the cam to lock the two components firmly together.
