Cam Expanding Dowel L24mm, M8 - 1 pc
Biscuits & Dowels

Cam Expanding Dowel L24mm, M8 - 1 pc

Availability: In Stock

Order within , and get it between and

Free delivery Furnica
£0.13
20% VAT included
£0.13
Klarna
M8 thread · Zinc-coated steel & plastic

Cam Expanding Dowel L24mm, M8 - 1 pc

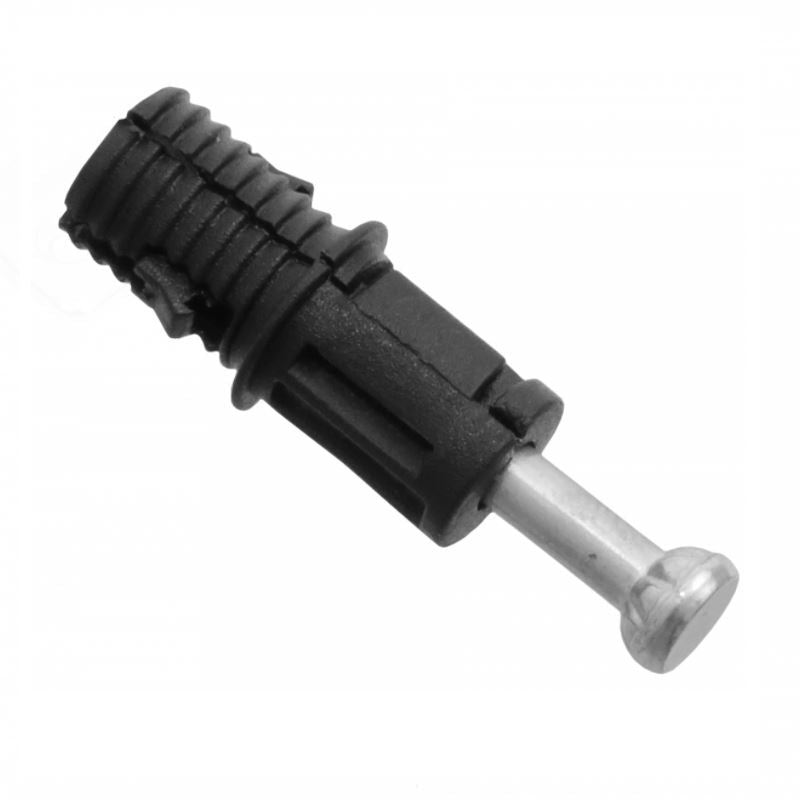

This cam dowel combines zinc-coated steel with an expanding plastic sleeve to create strong, rigid furniture joints.

  • ThreadMetric (M8)
  • MaterialZinc-coated steel / plastic
  • ColourZinc / black
  • Quantity1 pc
Cam Expanding Dowel L24mm, M8 - 1 pc
  • 24mm length

M8 thread with expanding sleeve for secure joints

The cam expanding dowel provides a heavy-duty connection for flat-pack cabinets and modular furniture. Its steel core and plastic casing anchor securely into pre-drilled panels to prevent loosening under load.

  • Precise M8 thread: The metric thread screws firmly into corresponding threaded sockets or inserts for high pull-out resistance.

  • Integrated expanding function: The plastic sleeve expands during tightening to grip firmly inside standard 8 mm holes.

  • Durable dual-material build: A zinc-coated steel core delivers tensile strength and corrosion resistance while the plastic body protects the board.

  • Exact 24 mm reach: The 24 mm working length aligns accurately with matching cam lock fittings for flush corner joints.

Where to use the M8 cam expanding dowel

  • CabinetryCarcass assembly

    Form robust, hidden corner joints across kitchen units, wardrobes, and shelving.

  • RepairDamaged fitting replacement

    Replace loose or broken connectors in existing 8 mm pre-drilled holes to restore structural rigidity.

  • ModularDemountable furniture

    Enables repeated assembly and disassembly of flat-pack furniture without stripping the panel material.

Fitting the cam expanding dowel

Supplied as 1 piece. Requires an 8 mm drill hole or M8 insert.
  1. 1
    Check panel hole

    Ensure the panel has a clean 8 mm pre-drilled hole or prepared M8 threaded fixing point.

  2. 2
    Screw in the dowel

    Drive the M8 dowel straight into the opening until the expanding sleeve is seated flush.

  3. 3
    Lock the cam fitting

    Bring the adjoining panel into position and turn the cam lock casing to secure the joint.
