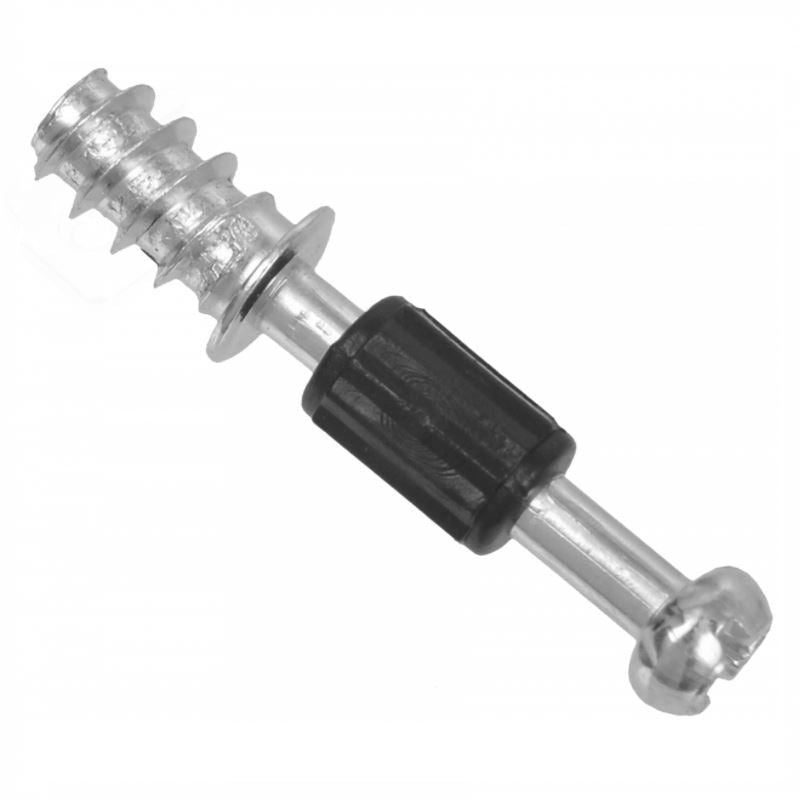

Cam Dowel 24mm with Euro Screw-Thread - 1 pc

This Cam Dowel 24mm with Euro Screw-Thread creates a firm, permanent furniture carcass joint in standard pre-drilled holes. Built from zinc-coated steel and plastic, it provides reliable pull-up strength when locked with a matching cam housing.

  • ThreadEuro
  • MaterialZinc-coated steel/plastic
  • ColourZinc/Black
  • Quantity1 piece
Cam Dowel 24mm with Euro Screw-Thread - 1 pc
  • 24mm length

24mm cam dowel with Euro thread for rigid cabinet assembly

The cam dowel with Euro screw-thread is engineered for direct insertion into pre-drilled furniture panels to form a rigid structural connection. Made from robust zinc-coated steel with a plastic sleeve, it resists wear under heavy panel loads.

  • Direct Euro-thread fixing: The specialised Euro thread screws straight into pre-drilled holes for a secure grip in manufactured timber panels.

  • Durable dual-material build: Manufactured from zinc-coated steel and plastic to deliver high tensile strength and long-lasting joint stability.

  • Discreet zinc and black finish: The neutral zinc and black colouring integrates cleanly inside wardrobes, cupboards, and flat-pack units.

Applications for this 24mm cam dowel

  • Cabinet makingFlat-pack carcass joints

    Connects side panels, base shelves, and top panels seamlessly when assembling knockdown furniture.

  • RepairBroken fitting replacement

    Serves as a precise single replacement dowel if an original fastener is damaged or lost during disassembly.

  • RetrofitInternal shelving additions

    Allows secure right-angle fixing when adding fixed structural shelves into pre-bored system panels.

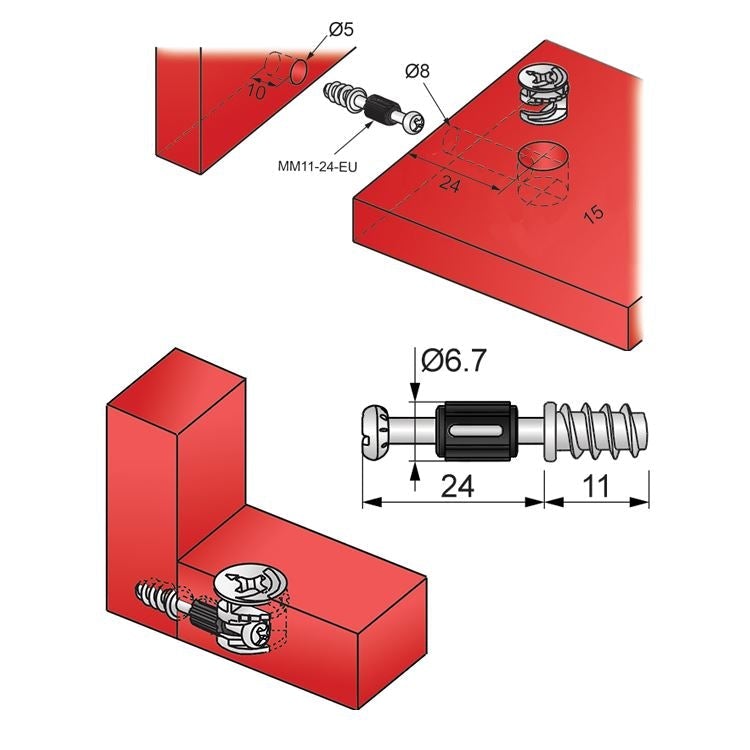

Fitting the cam dowel

Supplied as 1 piece
  1. 1
    Check the pre-drilled hole

    Ensure the hole in the cabinet panel is clean, debris-free, and aligned for a Euro-threaded fitting.

  2. 2
    Drive the dowel home

    Screw the dowel straight into the panel hole with a screwdriver until the stop collar sits flush against the surface.

  3. 3
    Engage and lock the housing

    Insert the protruding pin into the mating panel hole and turn the cam lock to pull the joint tight.
