Cam Dowel 28mm with Euro Screw-Thread - 1 pc
Biscuits & Dowels

Cam Dowel 28mm with Euro Screw-Thread - 1 pc

Availability: In Stock

Order within , and get it between and

Free delivery Furnica
£0.07
20% VAT included
£0.07
Klarna
Zinc-coated steel and plastic · Single piece

Cam Dowel 28mm with Euro Screw-Thread - 1 pc

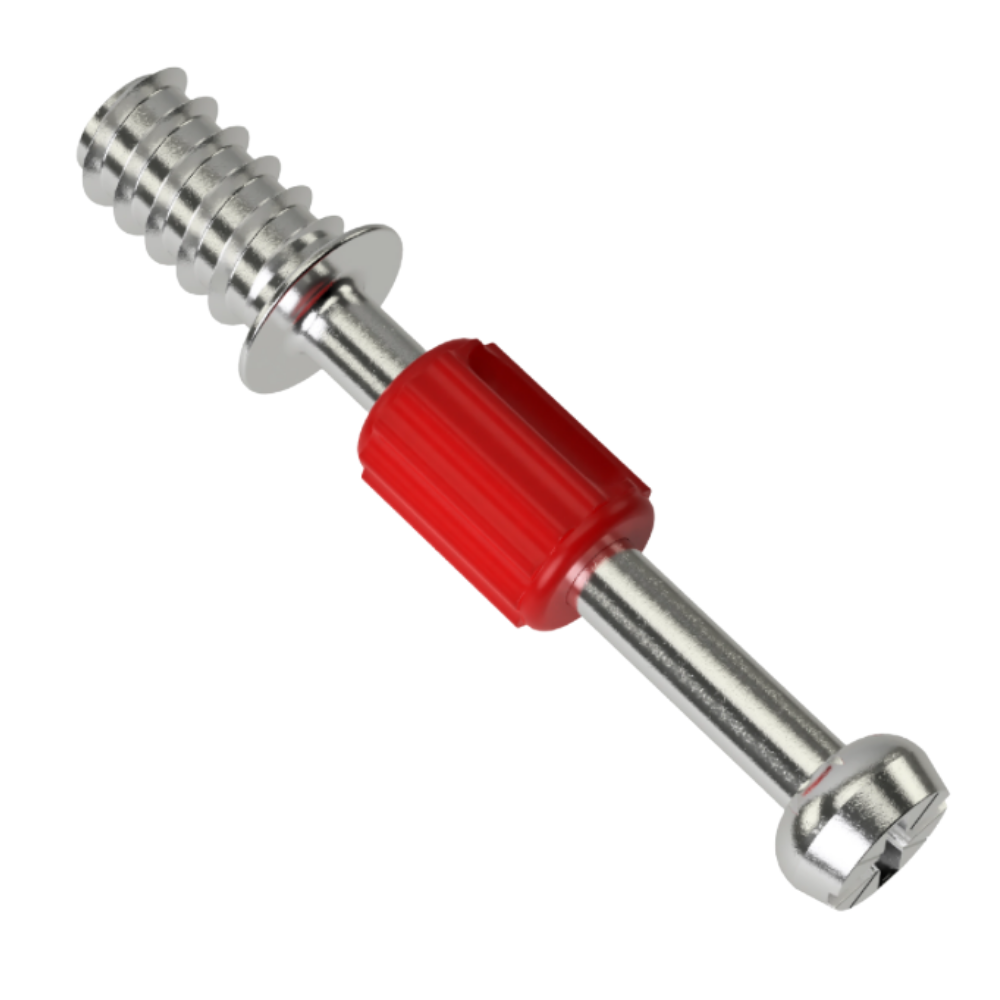

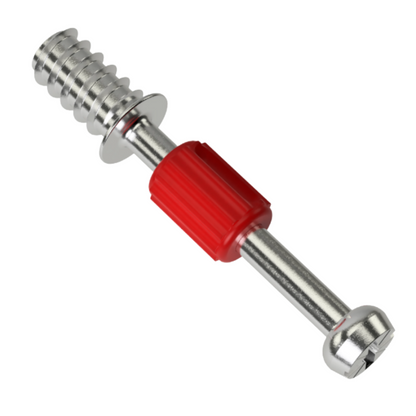

This 28mm cam dowel features a Euro screw-thread designed for direct insertion into pre-drilled furniture panels. Built from zinc-coated steel with a durable plastic sleeve, it ensures strong, reliable panel joints when paired with compatible cam locks.

  • ThreadEuro
  • MaterialZinc-coated steel / plastic
  • ColourZinc / Red
  • Quantity1 piece
Cam Dowel 28mm with Euro Screw-Thread - 1 pc
  • 28mm length

28mm cam dowel with Euro thread for cabinet assembly

The 28mm cam dowel with Euro screw-thread provides a heavy-duty connection for knock-down furniture carcases. Its steel core delivers high tensile strength while the integrated Euro thread anchors firmly into pre-drilled system holes.

  • Direct Euro thread fixing: The screw dowels thread securely into standard pre-drilled holes without requiring separate nylon inserts.

  • Zinc-coated steel core: Provides rigid structural support and long-term corrosion resistance within the furniture joint.

  • Durable plastic casing: The zinc and red collar ensures precise alignment and clean seating against the panel surface.

  • Exact 28mm reach: Maintains accurate engagement with matching cam lock connectors for tight carcase assembly.

Where this 28mm Euro thread cam dowel is used

  • Cabinet makingFlat-pack carcase assembly

    Connects side gables, base shelves, and top panels in knock-down cupboards and wardrobes.

  • MaintenanceReplacing worn fittings

    Direct replacement for a damaged cam dowel screw or stripped fitting in existing modular furniture.

  • Storage unitsFitting fixed intermediate shelves

    Anchors structural dividing panels and fixed internal shelving into standard system holes.

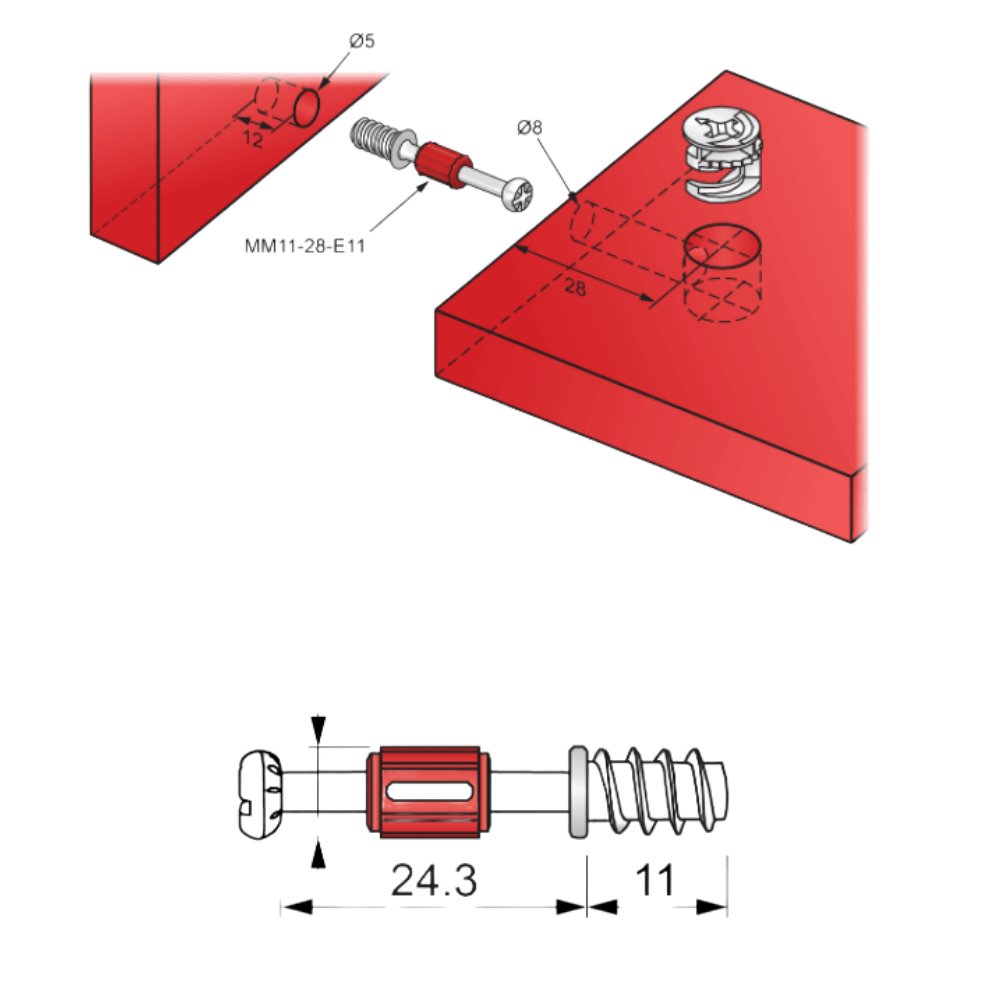

Fitting the Euro thread cam dowel

Requires a pre-drilled panel hole matching the Euro thread profile.
  1. 1
    Check the hole

    Clear the pre-drilled system hole of any dust or debris before fitting.

  2. 2
    Drive the dowel

    Screw the cam dowel straight into the pilot hole until the collar sits flush against the panel.

  3. 3
    Lock the joint

    Align the adjoining panel over the protruding 28mm pin and tighten the internal cam lock to secure.
