Cam Dowel 28mm with Euro Screw-Thread - 100 pcs
Biscuits & Dowels

Cam Dowel 28mm with Euro Screw-Thread - 100 pcs

Availability: In Stock

Order within , and get it between and

Free delivery Furnica
£4.50
20% VAT included
£4.50
Klarna
Euro thread · Pack of 100

Cam Dowel 28mm with Euro Screw-Thread - 100 pcs

This 28mm cam dowel provides a robust joint for cabinet assembly and flat-pack carcases. Designed with a direct Euro screw-thread, it secures firmly into pre-drilled 5 mm holes for dependable structural strength.

  • ThreadEuro
  • MaterialZinc-plated steel / plastic
  • ColourZinc / red
  • Quantity100 pcs
Cam Dowel 28mm with Euro Screw-Thread - 100 pcs
  • 28mm length

28 mm length with Euro screw-thread for rigid carcase joints

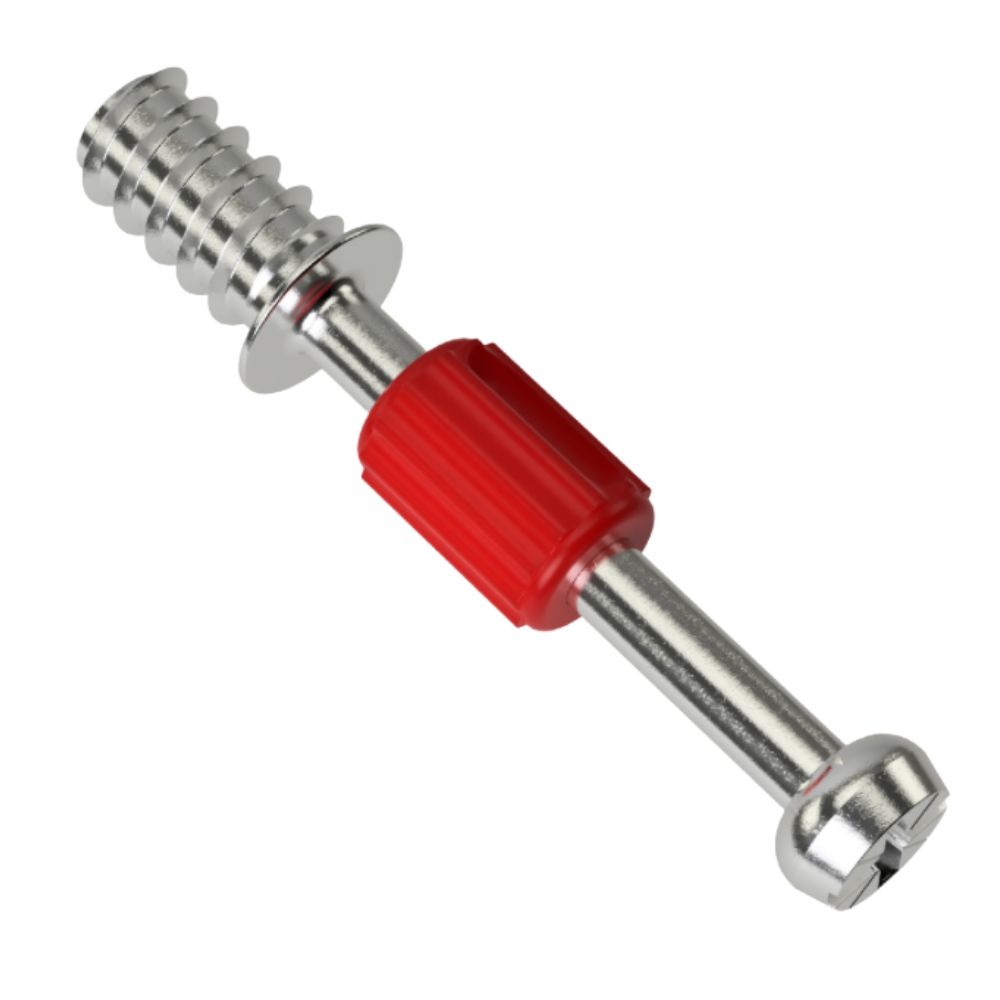

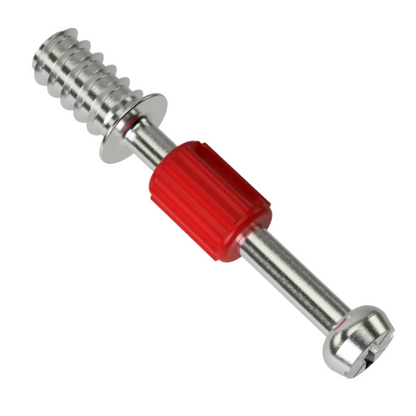

The 28mm cam dowel with Euro screw-thread is engineered for solid, knock-down furniture joints across standard cabinetry. Featuring a zinc-coated steel pin with an integrated red plastic sleeve, it delivers high tensile resistance and clean alignment.

  • Direct Euro thread: Drives straight into pre-drilled 5 mm system holes without requiring separate nylon inserts.

  • Zinc-plated steel core: Provides heavy-duty tensile strength to keep carcase panels tightly clamped together.

  • Red plastic collar: Guides the dowel accurately into position for consistent depth and neat perpendicular alignment.

  • Bulk pack of 100: Supplies enough connectors to assemble or repair multiple cabinets, cupboards, and shelving units.

Where this 28mm Euro thread cam dowel is used

  • CabinetryCupboard and unit carcases

    Connects side gables to top and bottom panels in flat-pack cabinets using standard cam fittings.

  • WorkshopFurniture repair and refits

    Replaces worn or damaged connector pins in modular shelving and dismantled wardrobes.

  • JoinerySystem 32 hole lines

    Fits directly into standard 5 mm pre-drilled row holes across prefabricated furniture panels.

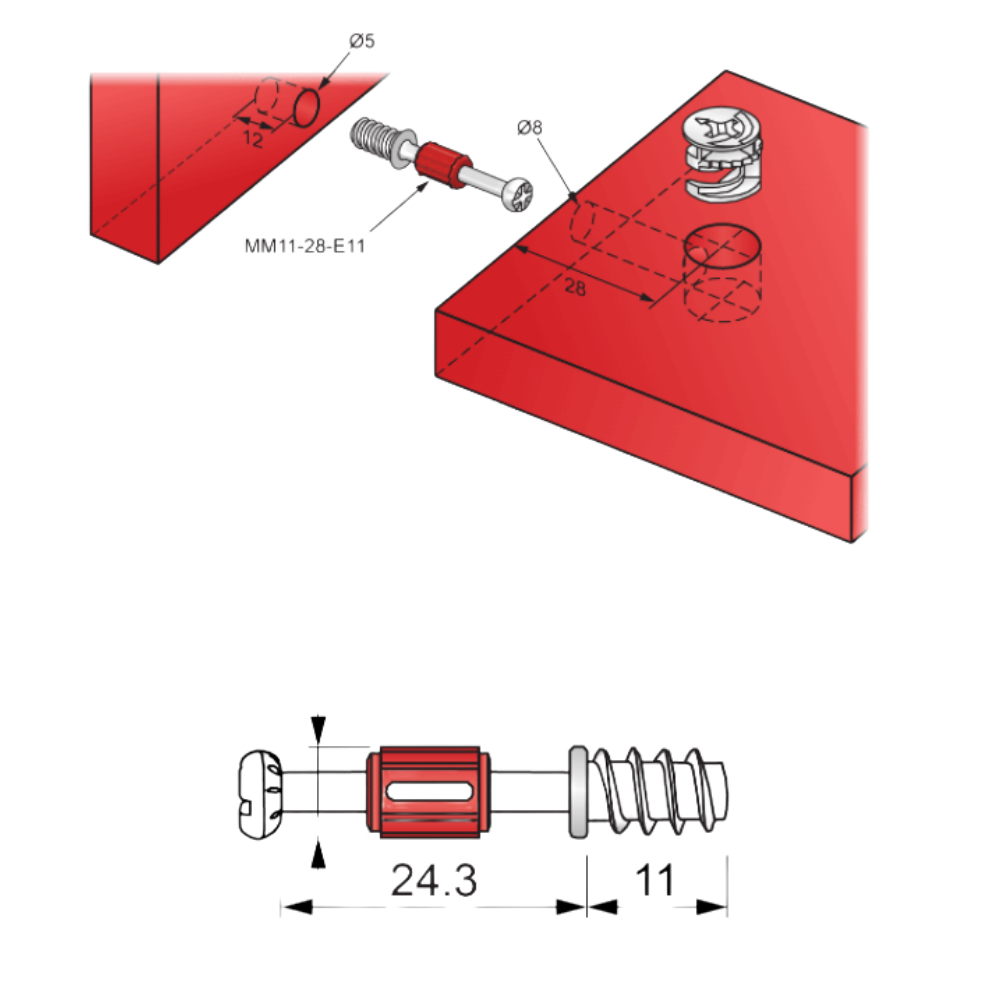

Fitting instructions for 5 mm system holes

Requires pre-drilled 5 mm holes
  1. 1
    Check the hole diameter

    Ensure the panel has a clean, pre-drilled hole measuring 5 mm in diameter.

  2. 2
    Drive in the dowel

    Screw the Euro-threaded pin straight into the hole until the red collar sits flush against the panel surface.

  3. 3
    Lock the cam fitting

    Offer up the adjoining panel over the dowel head and rotate the cam lock mechanism until fully tight.
