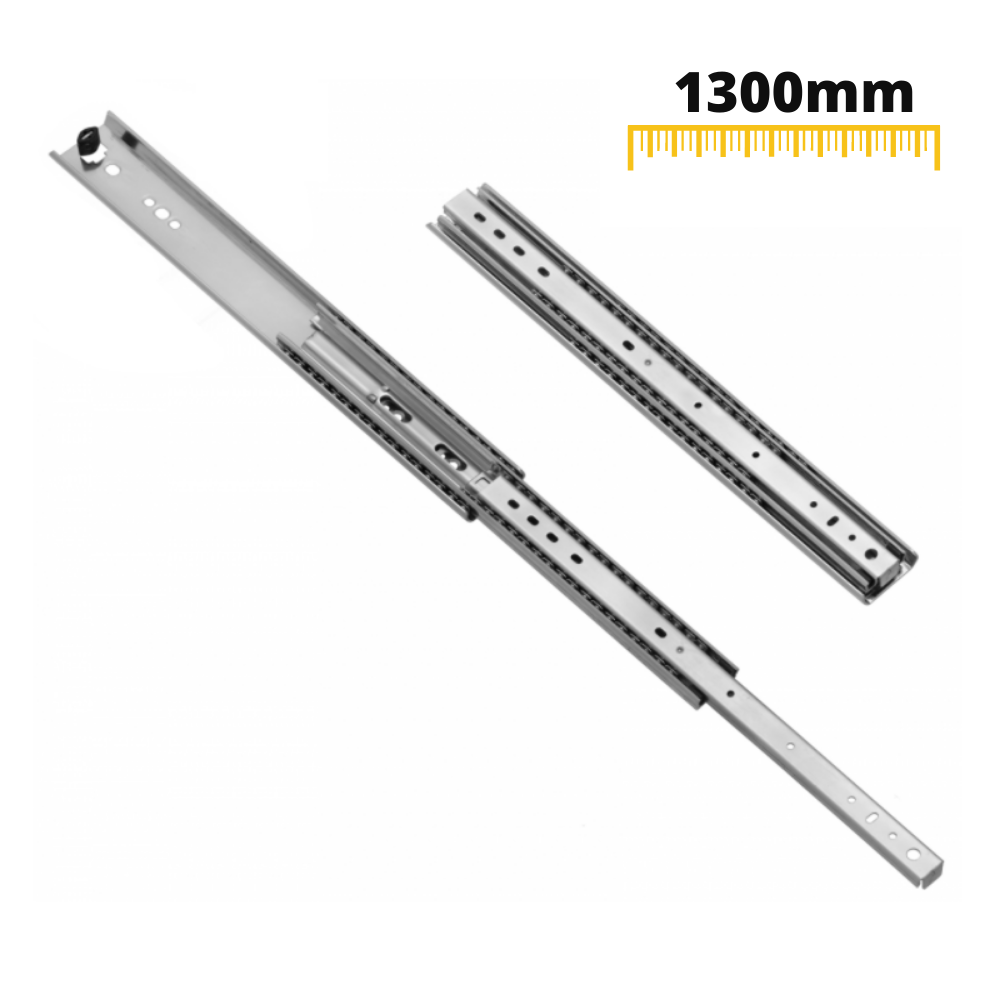

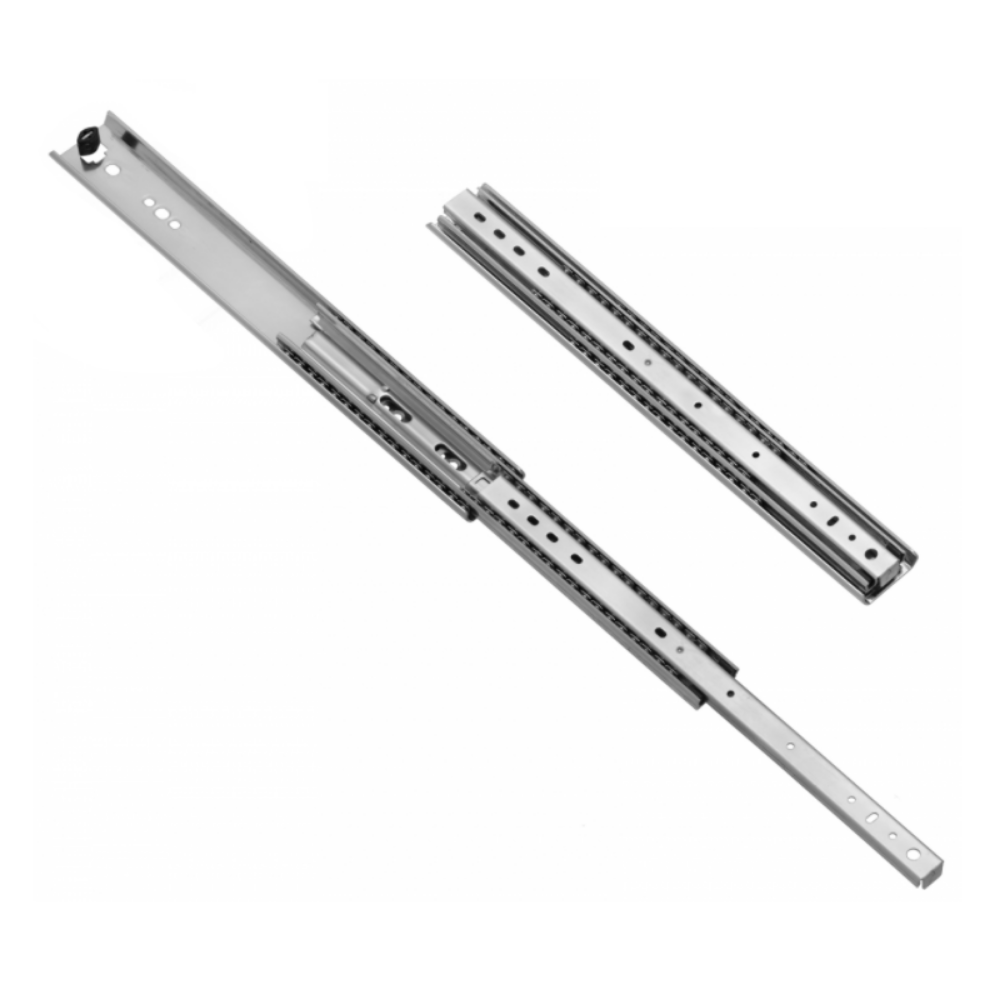

Drawer Runners Ball Bearing 1300mm - H53 (Right and Left Side)

Drawer Runners Ball Bearing 1300mm - H53 (Right and Left Side)

£45.24 Incl. VAT
£45.24 Incl. VAT
Buy more, save more
5 pcs
10 pcs
20 pcs
50 pcs
4 more to reach −5 % (£42.98 / pc.)
Estimated delivery time: 2–5 working days
Free delivery over £49.99
14-day returns
Payment and security

Your payment information is processed securely.

Product data
Heavy duty · Up to 136 kg · Zinc

Drawer Runners Ball Bearing 1300mm - H53 (Right and Left Side)

Pair of 1300 mm ball bearing drawer runners engineered to support heavy-duty storage loads up to 136 kg with full extension access.

  • Length1300mm
  • Height53mm
  • Maximum weight136kg
  • Full extensionYes
  • Material thickness2.0/2.0/2.0mm
  • ColourZinc
Drawer Runners Ball Bearing 1300mm - H53 (Right and Left Side)

53 mm profile with 136 kg load capacity

These 1300 mm heavy duty drawer runners feature a robust 2.0/2.0/2.0 mm material thickness and smooth ball bearing motion for extra-deep storage installations.

  • Full extension travel: Pulls out completely so you can easily reach items stored at the very back of a 1300 mm drawer box.

  • 136 kg load rating: Manufactured from solid nickel coated steel to carry heavy equipment, tools, or bulk pantry items reliably.

  • Heavy-gauge construction: The 2.0/2.0/2.0 mm steel thickness and 53 mm profile maintain structural rigidity across long spans.

  • Complete paired set: Supplied as matching left and right side tracks ready for direct side-mount installation.

Ideal applications for 1300 mm heavy duty runners

  • CampervansVan conversions and boot pull-outs

    Enables deep slide-out gear trays and cooking setups in rear load areas where long travel and high load ratings are critical.

  • Under-stairsDeep hallway storage drawers

    Maximises dead space beneath stairs with full-depth pull-outs that extend all the way out for unobstructed access.

  • WorkshopHeavy tool and equipment chests

    Carries weighty power tools and hardware boxes safely up to the 136 kg total rated weight capacity.

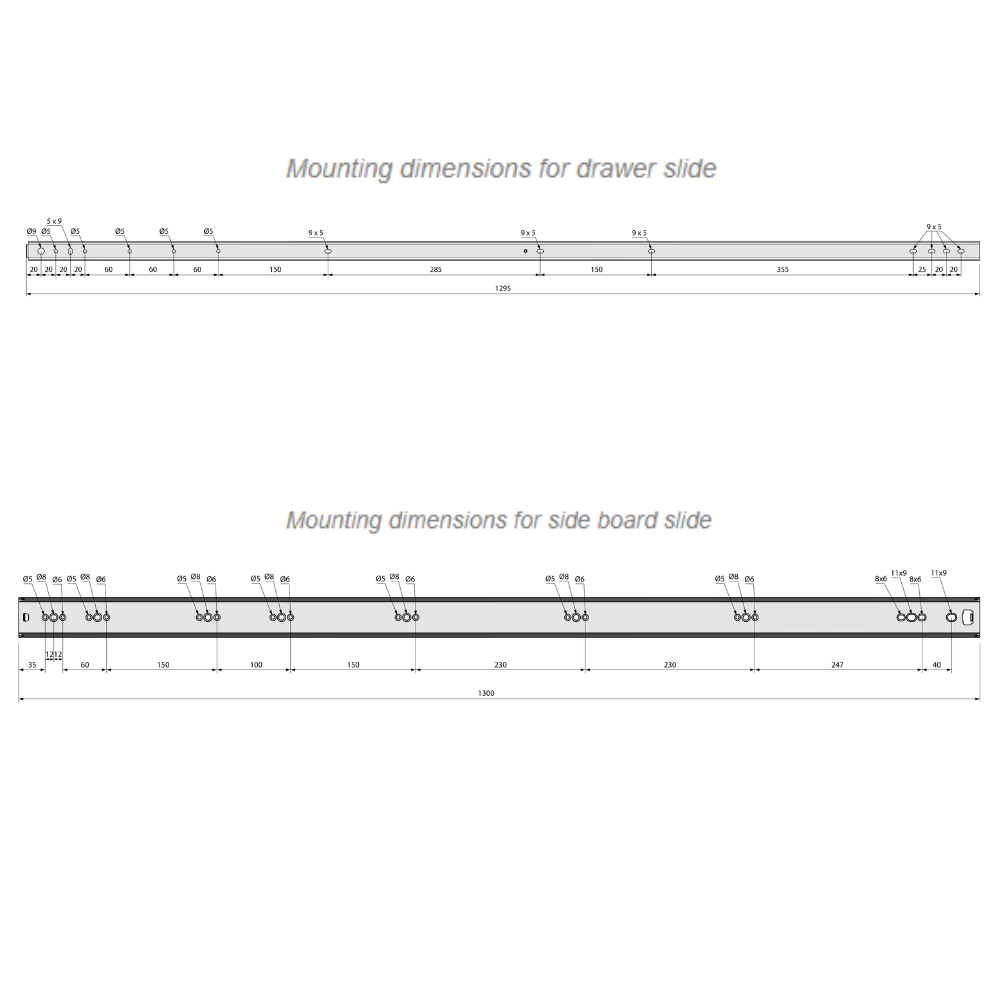

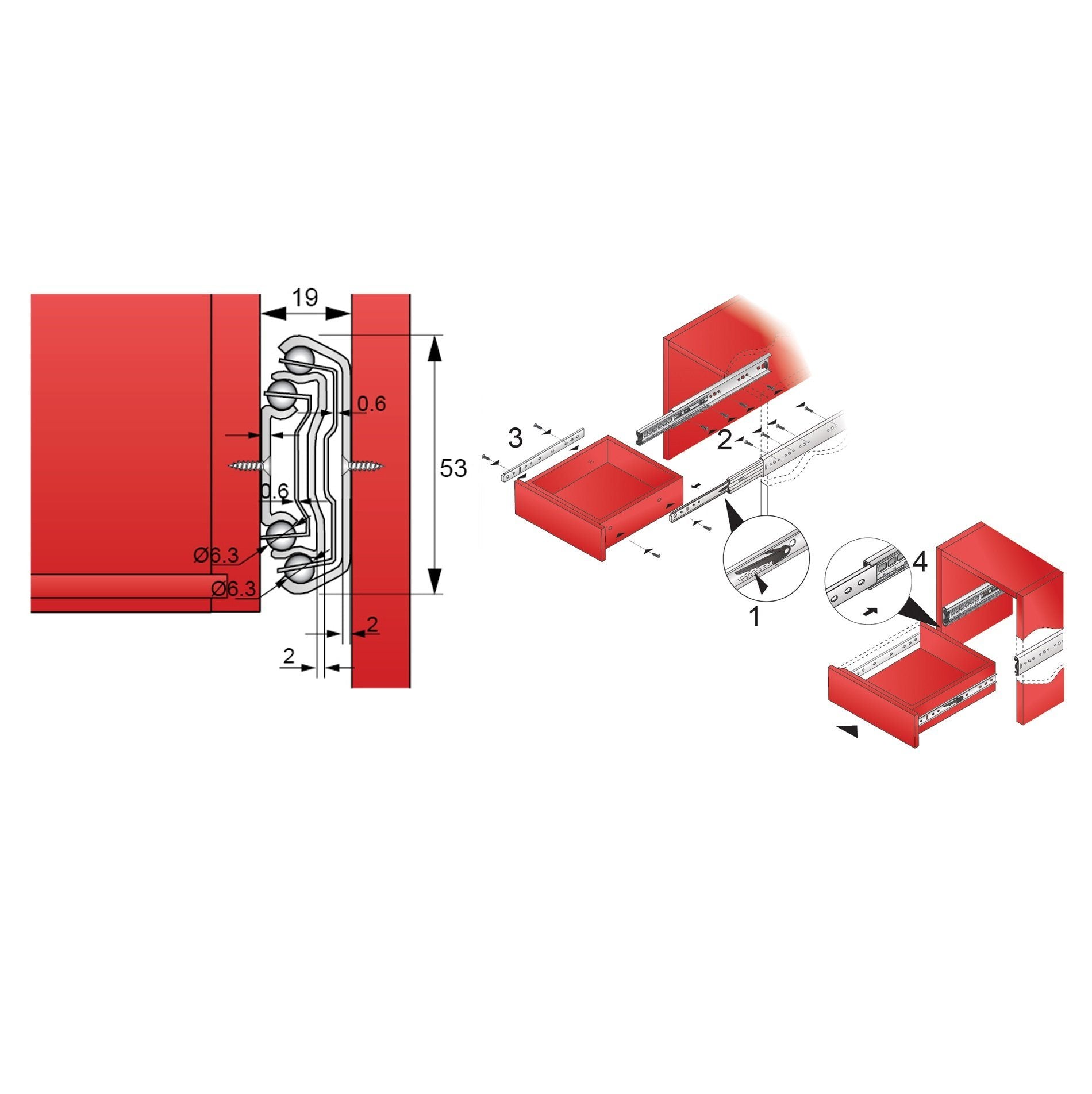

Installation steps

Ensure your carcass depth accommodates the full 1300 mm closed runner length before mounting.
  1. 1
    Separate and align

    Mark level horizontal lines on the interior carcass sides allowing 53 mm vertical clearance for the runner profile.

  2. 2
    Fix outer tracks

    Secure the outer tracks firmly to the cabinet side walls using appropriate fixings for your side panel thickness.

  3. 3
    Mount drawer and test

    Fix the inner tracks to the drawer box sides, engage the ball bearings, and glide the drawer through its full extension.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
EAN
5060857452136
SKU
PK53N-E-1300
