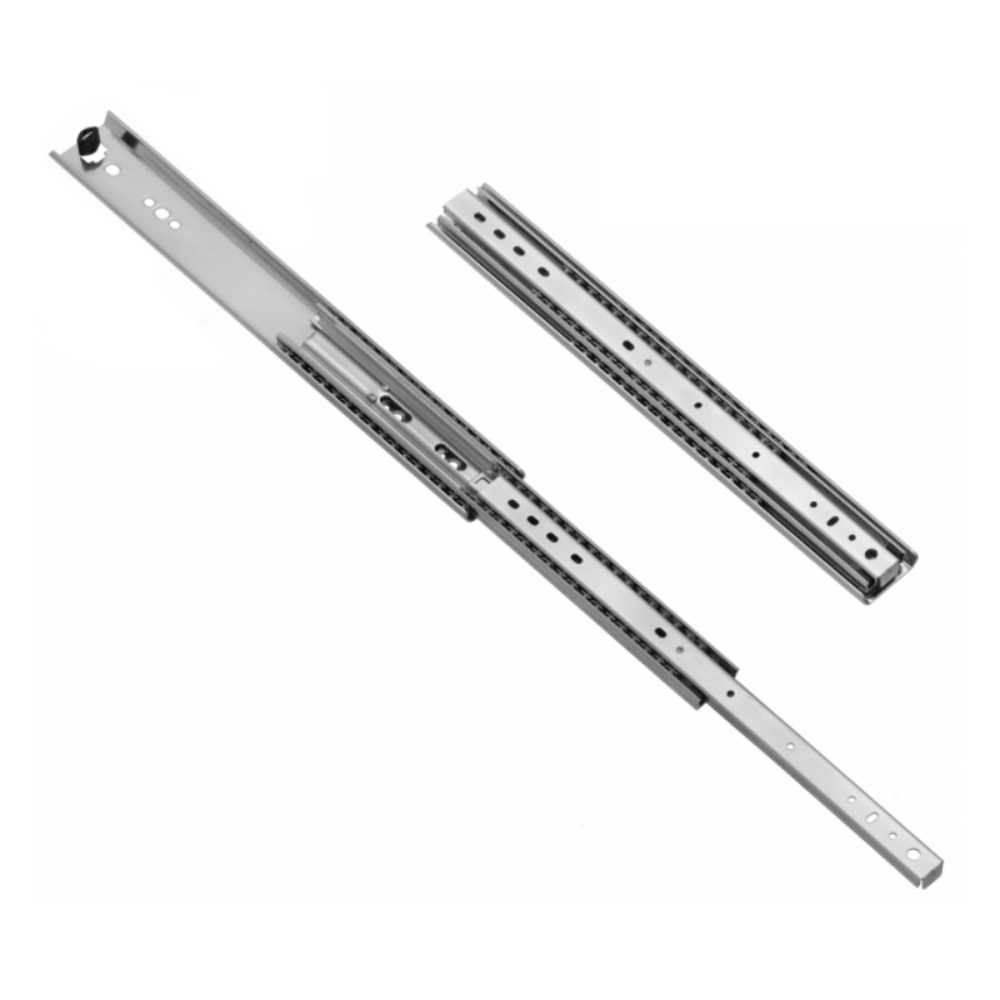

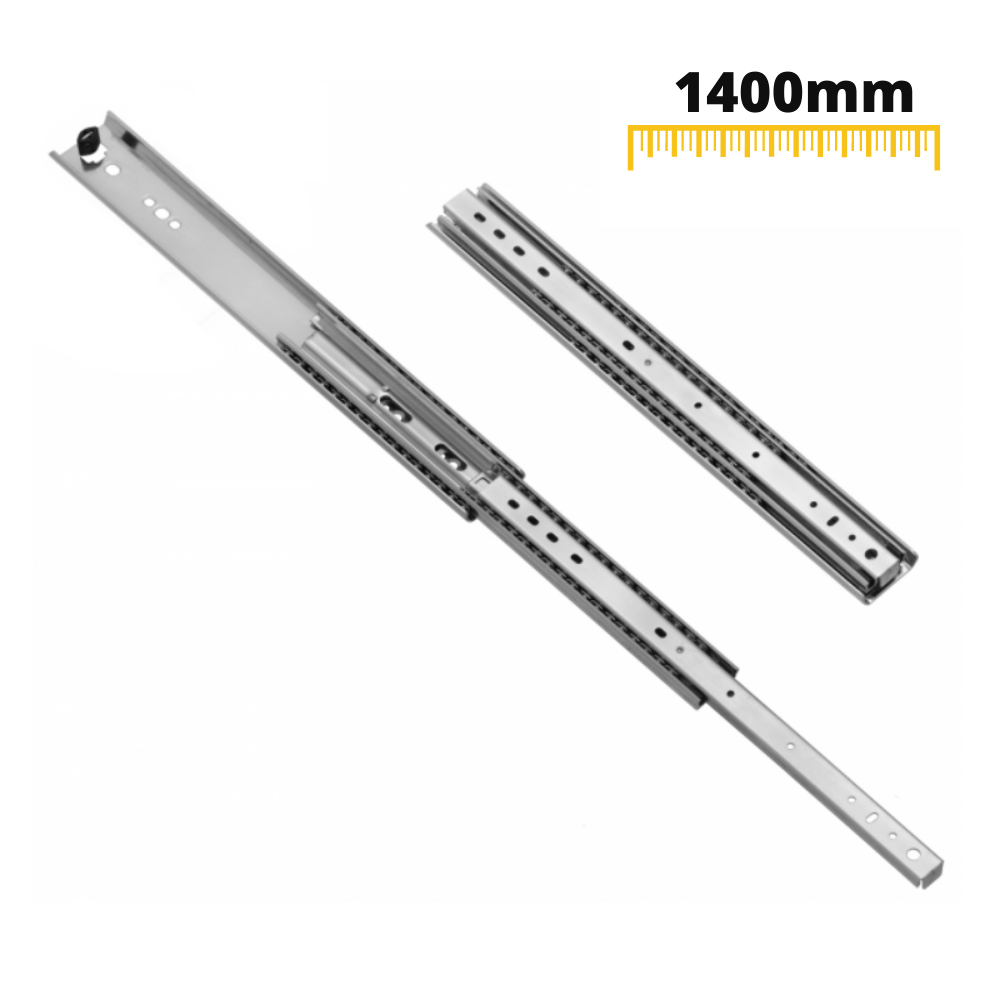

Drawer Runners Ball Bearing 1400mm - H53 (Right and Left Side)

Drawer Runners Ball Bearing 1400mm - H53 (Right and Left Side)

£48.71 Incl. VAT
£48.71 Incl. VAT
Buy more, save more
5 pcs
10 pcs
20 pcs
50 pcs
4 more to reach −5 % (£46.28 / pc.)
Estimated delivery time: 2–5 working days
Free delivery over £49.99
14-day returns
Payment and security

Your payment information is processed securely.

Product data
Steel · Pair (left and right) · Up to 136 kg

Drawer Runners Ball Bearing 1400mm - H53 (Right and Left Side)

These heavy duty drawer runners provide full extension access for deep, high-capacity pull-out units supporting loads up to 136 kg.

  • Full extensionYes
  • Maximum weight136kg
  • Length1400mm
  • Height53mm
  • Material thickness2.0/2.0/2.0mm
  • ColourZinc
Drawer Runners Ball Bearing 1400mm - H53 (Right and Left Side)

Heavy-duty 1400 mm ball bearing slides for deep storage builds

Engineered with 2.0 mm thick steel, this heavy duty drawer slide pair uses robust ball bearings to guide extra-long drawers smoothly under demanding loads.

  • Full extension travel: The 1400 mm slide pulls out entirely so you can reach items stored right at the back of extra-deep compartments.

  • 136 kg load capacity: Rigid 2.0/2.0/2.0 mm steel walls maintain alignment and support substantial weight without flexing.

  • Ball bearing mechanism: Integrated steel ball bearings deliver smooth, consistent gliding action even when the drawer is loaded.

  • Zinc protective finish: A protective zinc coating across the steel surfaces defends against wear and workshop damp.

Where 1400 mm heavy-duty slides are installed

  • Under-stairsDeep under-stairs pull-outs

    Mount long storage carcasses into deep under-stairs voids to utilise the entire depth of the cavity.

  • WorkshopHeavy tool cabinets

    Fit to deep garage or workshop benches requiring high load-bearing capacity for heavy hand tools and equipment.

  • VehiclesVan and boot slide-outs

    Build custom rear-tray pull-out platforms that slide out fully past the vehicle tailgate.

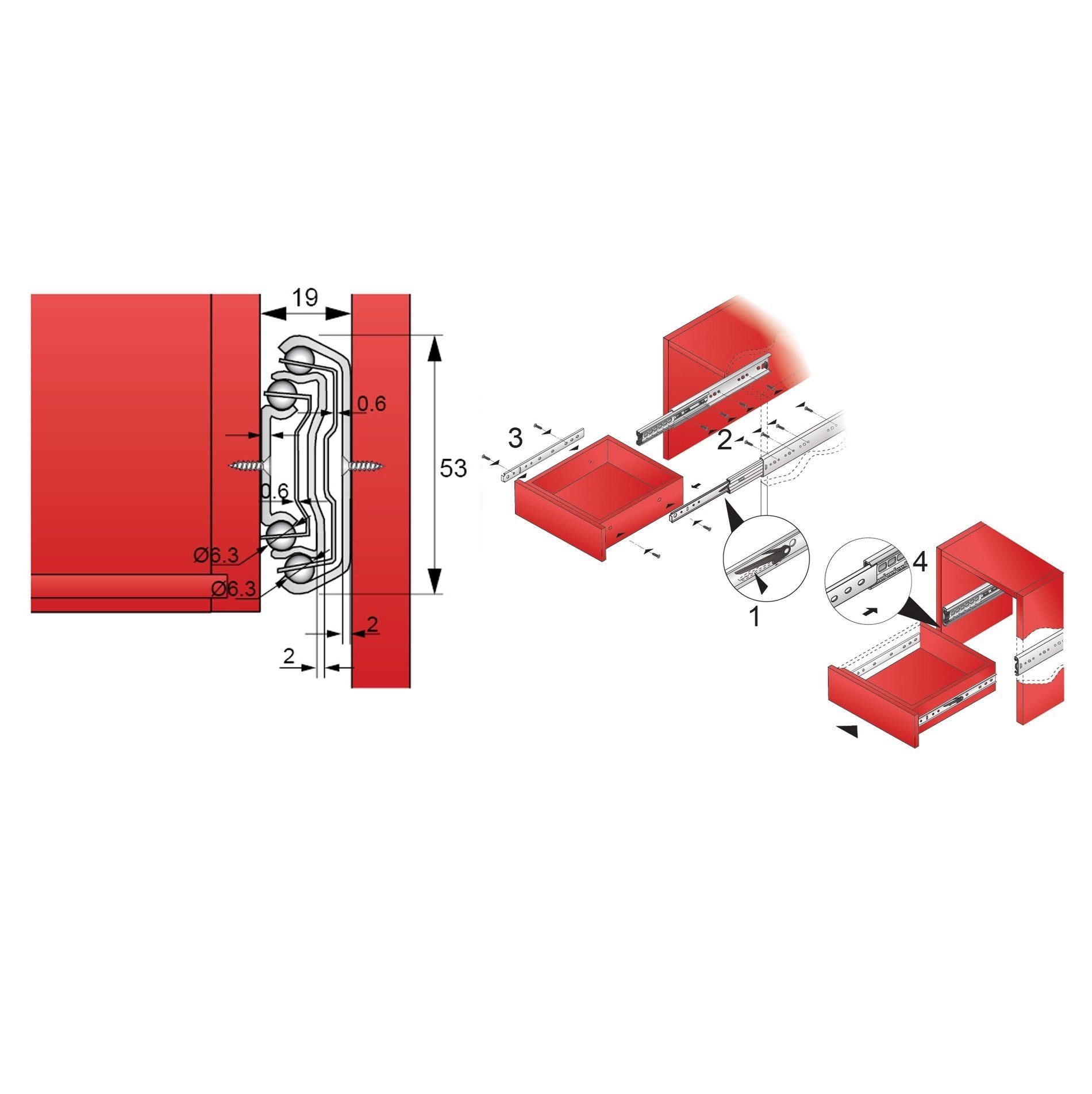

Fitting your side-mounted slides

Supplied as a matched left and right pair for side mounting
  1. 1
    Separate and align the members

    Release the inner drawer profile and mark level horizontal fixing lines on both the cabinet wall and drawer box.

  2. 2
    Secure to cabinet carcasses

    Fasten the outer runners to the internal sides of the cabinet using appropriate fixings for your side panel thickness.

  3. 3
    Attach to drawer and engage

    Fix the inner profiles onto the drawer sides and slide the drawer into the cabinet tracks until the ball bearings click into place.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
EAN
5060857452143
SKU
PK53N-E-1400
