Product data
Zinc-coated steel · Up to 136 kg · 1 pair

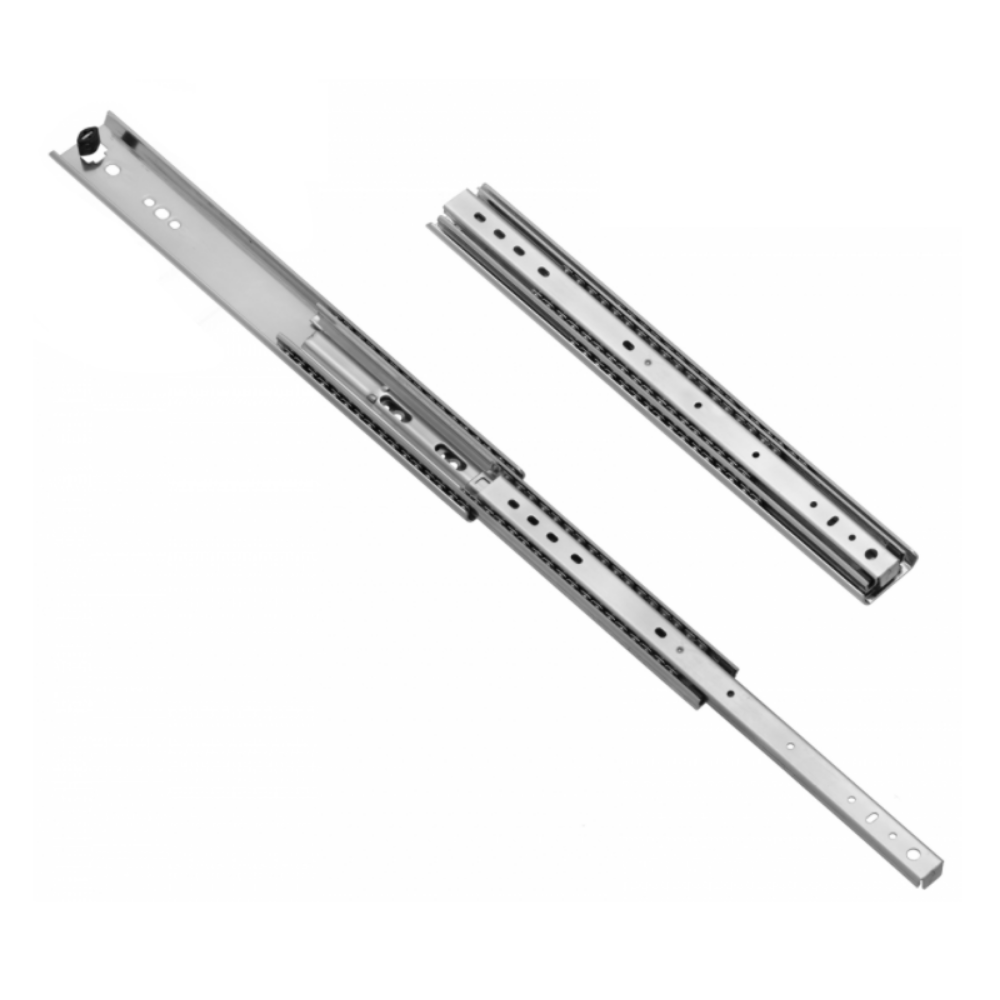

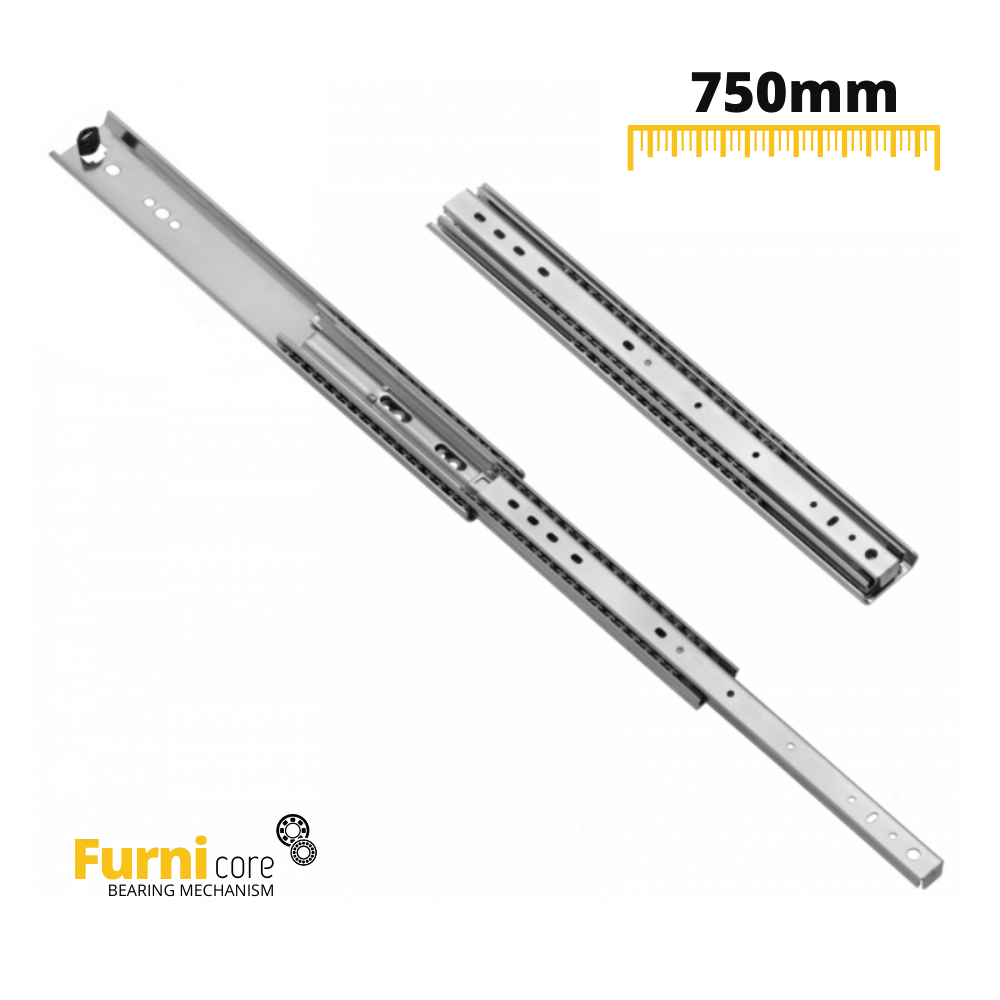

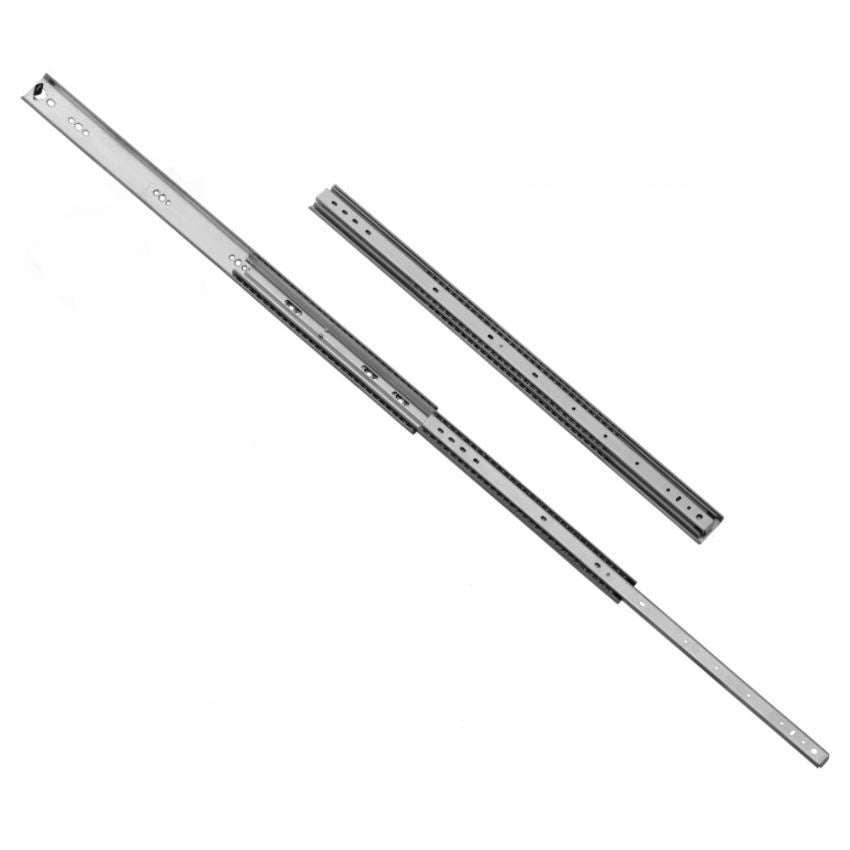

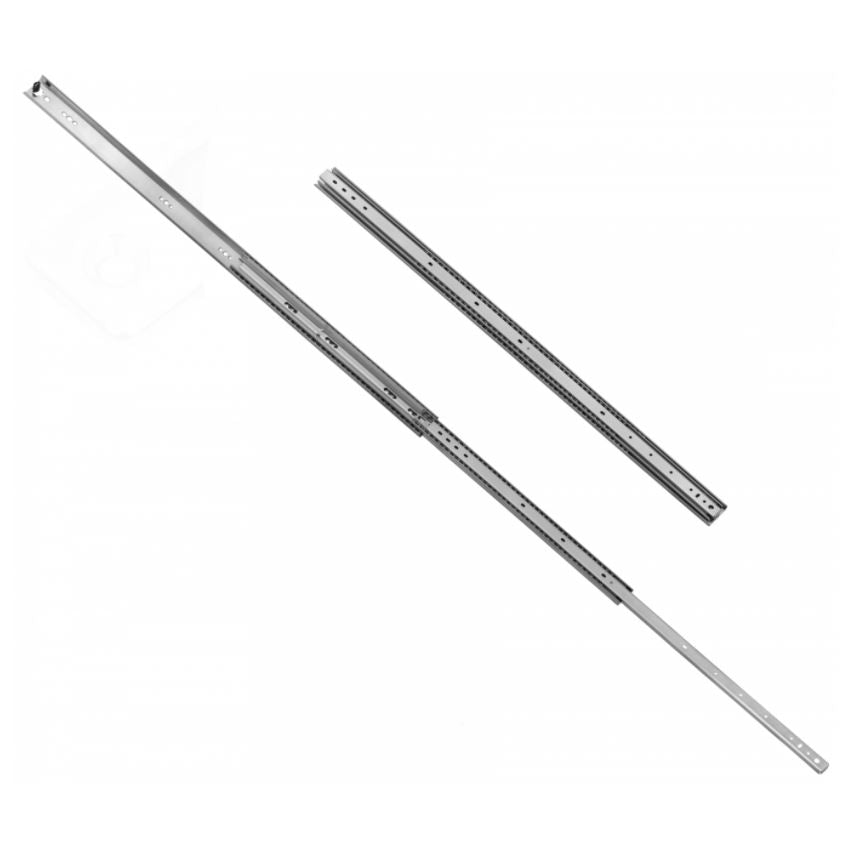

Drawer runners ball bearing 750mm - H53 (right and left side)

These heavy-duty drawer runners deliver full extension access and support heavy loads up to 136kg. Manufactured from robust 2.0/2.0/2.0mm zinc-coated steel, the pair provides dependable side-mounted motion for deep drawers.

  • Maximum weight136kg
  • Length750mm
  • Full extensionYes
  • MaterialZinc-coated steel
  • Material thickness2.0/2.0/2.0mm
  • ColourZinc
Drawer runners ball bearing 750mm - H53 (right and left side)
  • 53mm height

Heavy-duty 750 mm ball bearing slides with 136 kg capacity

Engineered for high-load applications, this pair of drawer runners features a rigid steel ball bearing construction designed to carry up to 136kg smoothly across the entire 750mm travel length.

  • High 136kg load capacity: Accommodates heavy storage requirements without bending or sagging under full load.

  • Full extension travel: Opens completely so the entire contents of a 750mm deep drawer remain fully accessible.

  • Heavy-gauge steel construction: Built with 2.0/2.0/2.0mm thick zinc-coated steel to resist deformation and protect against corrosion.

  • Precision ball bearing movement: Steel ball bearings ensure consistent, controlled gliding action for both the left and right side tracks.

Applications for 750 mm heavy-duty runners

  • WorkshopHeavy tool storage units

    Ideal for wide, deep drawers holding heavy power tools, metal hardware, and machinery components.

  • Storage & OfficeDeep archive and equipment drawers

    Handles bulky file archives and dense storage boxes across deep cabinets without strain.

  • UtilityPantry and heavy larder units

    Provides full visibility and uncompromised support for deep pull-out household storage.

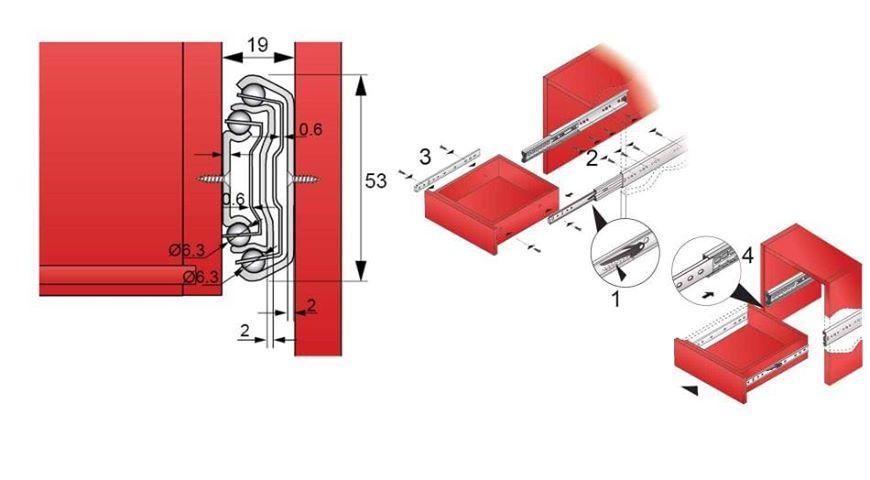

Fitting the drawer runners

Supplied as 1 pair (left and right side) for one drawer unit.
  1. 1
    Position the cabinet tracks

    Measure and align the outer rails horizontally on the internal sides of the cabinet carcass, then screw them securely in place.

  2. 2
    Secure the inner rails to the drawer

    Align the matching inner runner sections flush along the lower outer sides of the drawer box and fasten with appropriate fixings.

  3. 3
    Engage and slide home

    Line up the drawer runners with the cabinet tracks, guide the unit into position, and slide the drawer completely closed to verify smooth movement.

  • 2–5 working daysEstimated delivery time
  • Free deliveryon orders over £49.99
  • 14 daysReturns & exchanges
  • Shop Pay · Apple PayGoogle Pay & cards

Technical data
Additional mechanism
None
Colour
Zinc
Manufacturer
Furnica
Full extension
Yes
Height
53mm
Length
400-1500mm
Material
Galvanised steel
Material thickness
2.0/2.0/2.0mm
Maximum weight
136kg
EAN
5060685604684
SKU
PK53N-E-0750
