M6 threaded insert 8x10mm - 1 pc
Biscuits & Dowels

M6 threaded insert 8x10mm - 1 pc

Availability: In Stock

Order within , and get it between and

Free delivery Furnica
£0.13
20% VAT included
£0.13
Klarna
ZnAl · For 8 mm pre-drilled holes

M6 threaded insert 8x10mm - 1 pc

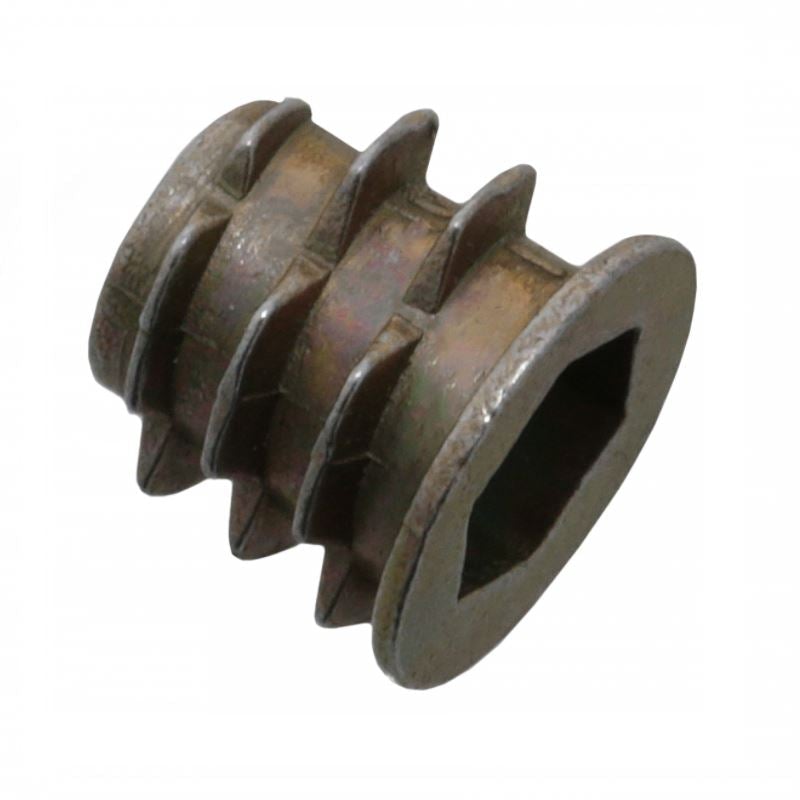

This M6 threaded insert creates a secure metal internal thread in timber and board components. Measuring 8 mm in external diameter and 10 mm in length, it provides a firm anchor for repeated assembly without wear.

  • Screw threadM6
  • MaterialZnAl
  • ColourZinc
  • Quantity1 pc
M6 threaded insert 8x10mm - 1 pc

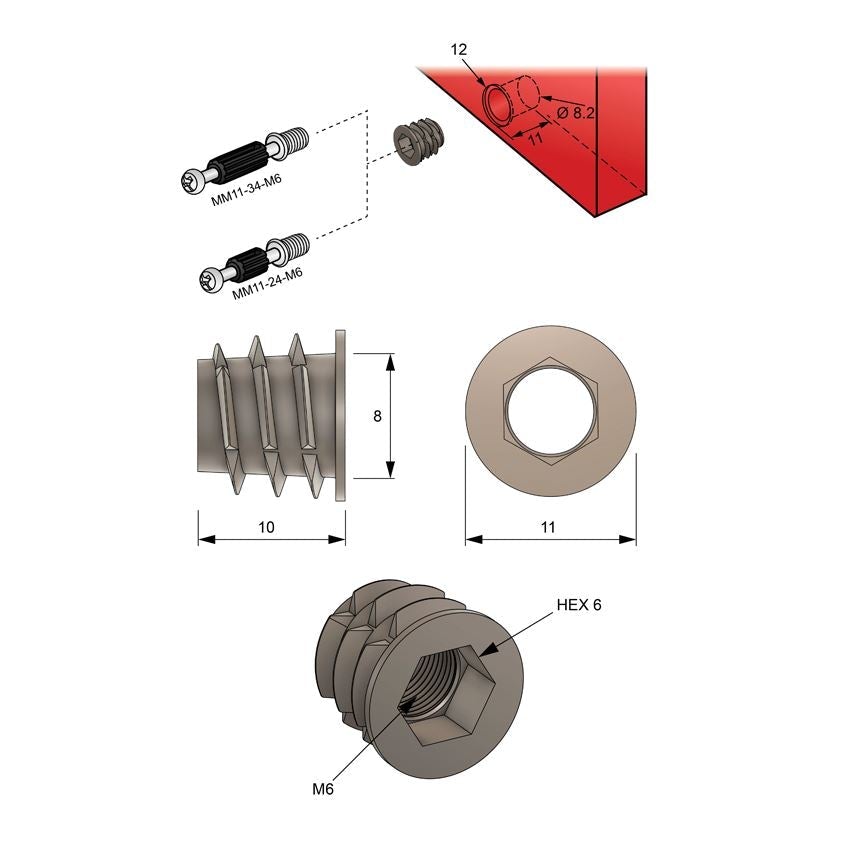

  • 8mm diameter
  • 10mm length

M6 metric thread in a compact 10 mm length

The M6 threaded insert provides a durable mechanical thread inside pre-drilled panels. It ensures strong pull-out resistance and enables metric fixings to be screwed in and removed repeatedly without damaging the base material.

  • Standard M6 internal thread: Accepts standard M6 metric bolts and fasteners for clean tightening and regular disassembly.

  • Compact 10 mm depth: Fits securely into thinner timber boards and shallow panels where fixing depth is limited.

  • Durable ZnAl alloy: The zinc-aluminium alloy construction delivers mechanical strength for rigid cabinet and frame joints.

  • Accurate 8 mm fit: Seats tightly into an 8 mm pre-drilled hole for dependable stability.

Applications for 8x10 mm threaded inserts

  • CabinetmakingKnock-down furniture joints

    Provides solid fixing points in carcasses and shelving units that require repeated assembly and dismantling.

  • RepairStripped screw hole reinforcement

    Acts as a replacement dowel insert to restore torn-out or damaged screw holes in wooden panels.

  • WorkshopCustom timber assemblies

    Adds strong metric threaded anchor points to bespoke woodworking projects and DIY furniture frames.

Fitting the threaded insert

Requires a pre-drilled 8 mm hole
  1. 1
    Drill the pilot hole

    Drill an 8 mm diameter hole perpendicular to the surface of the timber panel.

  2. 2
    Position the insert

    Place the insert squarely over the opening and check that it sits flush with the surface.

  3. 3
    Drive into place

    Drive the insert evenly into the prepared hole until it reaches the desired depth.
