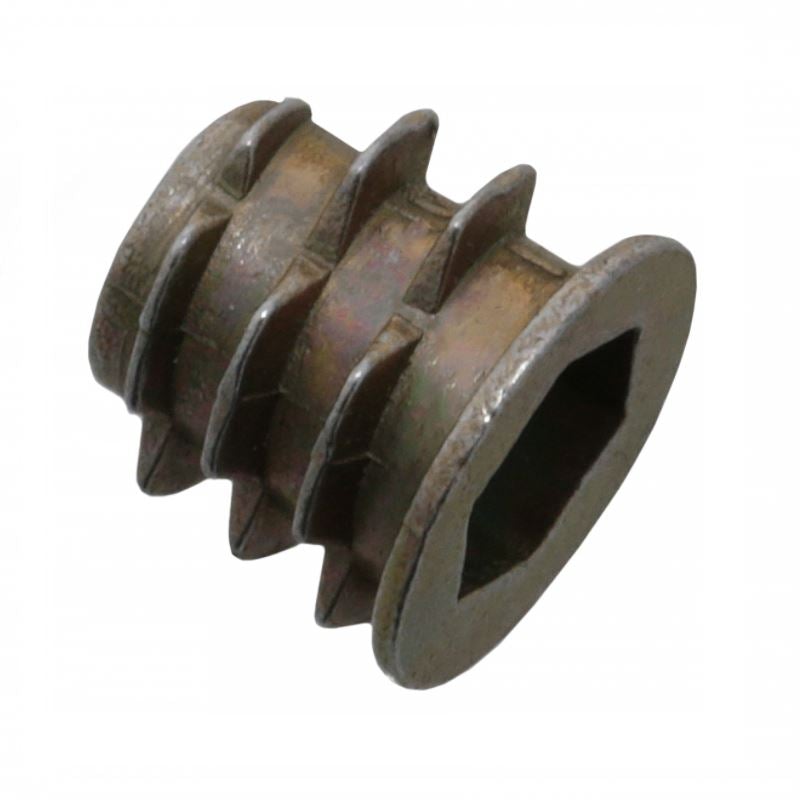

M6 threaded insert 8x10mm - 100 pcs
Biscuits & Dowels

M6 threaded insert 8x10mm - 100 pcs

Availability: In Stock

Order within , and get it between and

Free delivery Furnica
£7.91
20% VAT included
£7.91
Klarna
ZnAl alloy · Pack of 100

M6 threaded insert 8x10mm - 100 pcs

This M6 threaded insert creates a durable metric screw thread in timber and sheet materials, preventing stripped holes and allowing repeated assembly.

  • Screw threadM6
  • MaterialZnAl
  • ColourZinc
  • Quantity100 pcs
M6 threaded insert 8x10mm - 100 pcs
  • 8mm diameter
  • 10mm length

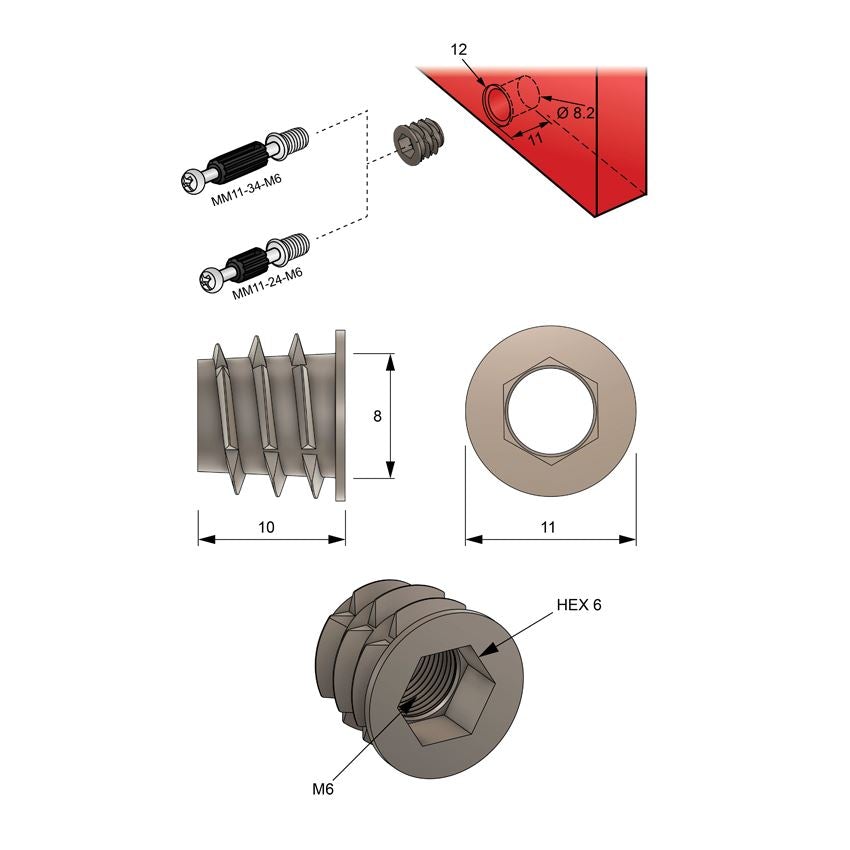

M6 internal thread with 8 mm outer fitting

The M6 threaded insert provides a robust metal anchor in wood-based boards for strong, demountable joints. It serves as a sturdy dowel insert for connecting bolts and standard machine screws.

  • Metric M6 internal thread: Accepts standard M6 machine screws to create strong joints that can be undone and refitted multiple times.

  • Durable ZnAl alloy: The zinc-aluminium construction provides mechanical stability during installation and resists wear under load.

  • Compact 10 mm length: Suitable for shallow panels and thinner boards without piercing through the opposing side.

  • Pack of 100 pieces: Supplies enough fittings to complete multiple cabinetry projects, flat-pack builds, or workshop repairs.

Applications for 8x10 mm threaded inserts

  • CabinetryCarcass assembly

    Provides solid anchor points in chipboard and MDF for assembling and flat-packing cupboards or wardrobe units.

  • HardwareCam and connector bolts

    Acts as a reinforced internal anchor for eccentric connecting bolts in modular furniture joints.

  • RepairStripped screw holes

    Renews damaged timber holes in tables, chairs, and frames by replacing weakened wood threads with a solid M6 metal socket.

Fitting into sheet materials

Requires an 8 mm pre-drilled hole
  1. 1
    Drill the hole

    Drill an 8 mm diameter hole perpendicular to the panel surface to the appropriate depth.

  2. 2
    Align the insert

    Place the threaded insert straight and centred over the drilled opening.

  3. 3
    Screw in flush

    Drive the insert squarely into the board with a suitable tool until it sits flush with the surface.
