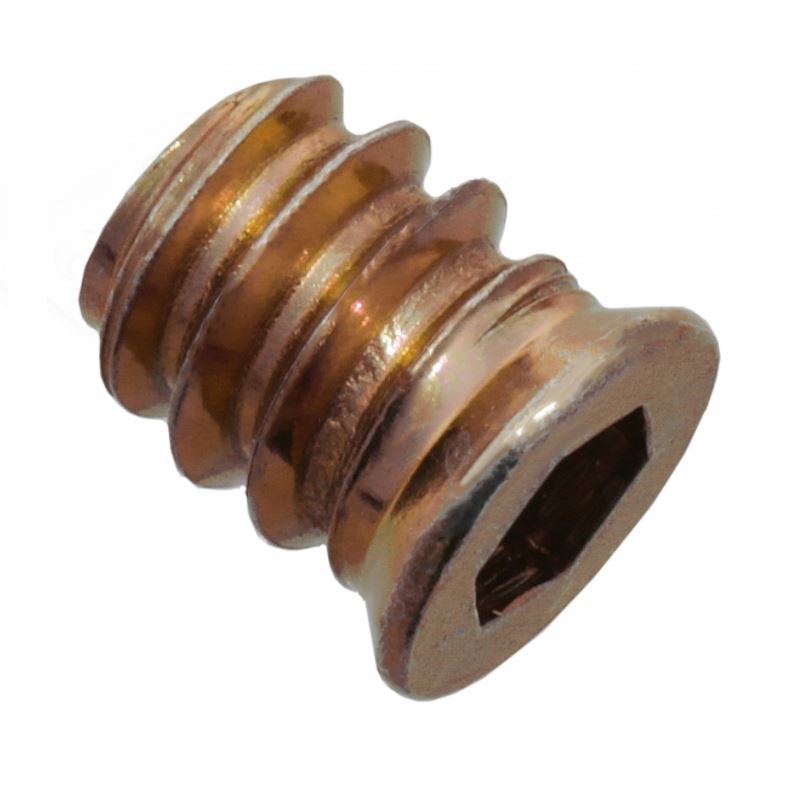

M6 threaded insert 10x13mm - 1 pc
Biscuits & Dowels

M6 threaded insert 10x13mm - 1 pc

Availability: In Stock

Order within , and get it between and

Free delivery Furnica
£0.16
20% VAT included
£0.16
Klarna
ZnAl · 1 piece

M6 threaded insert 10x13mm - 1 pc

This 10x13mm threaded insert creates a reliable metric thread in timber and panel materials. It provides a durable M6 internal connection that can be assembled and dismantled repeatedly without wearing out the host material.

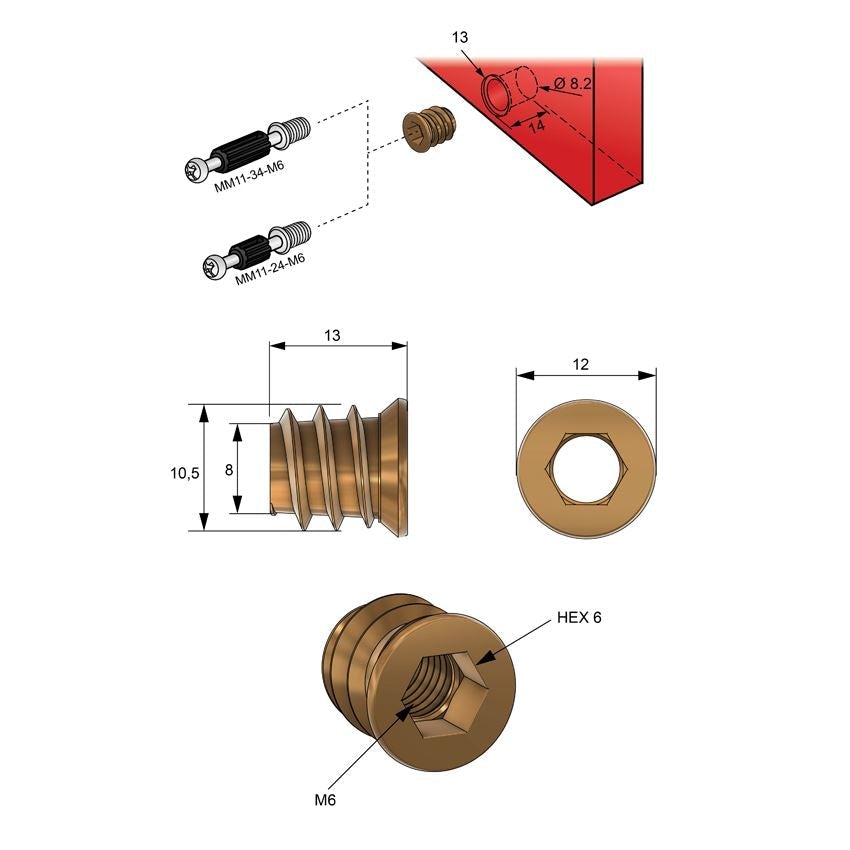

  • Screw threadM6
  • Dimensions10x13mm
  • MaterialZnAl
  • ColourZinc
  • Quantity1 piece
M6 threaded insert 10x13mm - 1 pc

10x13mm M6 internal thread for timber joints

The M6 threaded insert provides a sturdy metal anchor inside wooden panels, functioning as a dependable dowel insert for modular furniture fittings. Made from durable ZnAl alloy, it allows repeated tightening without stripping the surrounding board.

  • Metric M6 internal thread: Accommodates standard M6 machine bolts and connector pins for strong, demountable joints.

  • Solid ZnAl construction: The zinc-aluminium alloy delivers structural stability and resistance to deformation under load.

  • Compact 10x13mm dimensions: Its 13 mm length allows installation into standard furniture panels without penetrating the opposite face.

  • Prevents timber blowout: Evenly distributes tightening force across the drilled hole to protect the base material.

Applications for the 10x13mm M6 insert

  • CabinetmakingCarcass and panel assembly

    Provides solid anchor points for connecting cupboard panels, framework, and hardware fittings.

  • RepairStripped screw hole restoration

    Replaces damaged or loose screw fixings in chipboard or timber by creating a permanent metal thread.

  • WorkshopKnock-down furniture builds

    Allows repeated assembly and dismantling of plywood and solid wood structures without joint degradation.

Fitting the insert

Requires a pre-drilled hole in the host panel.
  1. 1
    Pre-drill the pilot hole

    Drill a straight pilot hole to match the 10 mm outer body into the timber component.

  2. 2
    Drive in the insert

    Screw the 10x13mm insert squarely into the prepared hole until it sits flush with the surface.

  3. 3
    Fasten the M6 bolt

    Align the mating component and tighten an M6 machine screw into the internal thread.
